DS 50 HDRS

Underbench or Free-Standing Washer Disinfector
Our DS 50 HDRS represents the ideal aid for the cleaning, thermal disinfection and drying of all types of dental and surgical instruments, with a processing capacity of one DIN tray. This model has been designed both for free positioning and for easy integration under the counter. This device is equipped with a high visibility full glass door and a user-friendly soft-touch control system on the glass panel with LCD colour display.

DS 50 HDRS provides a practical and safe solution for chemical storage, with a bottom basement that allocates up to two 5 lt chemical containers. The built-in water softener provides optimal cleaning effectiveness. In addition, the drop-down door provides a loading platform for a convenient loading and unloading job.
Download Brochure
DS 50 Steelco Washer Disinfector front view

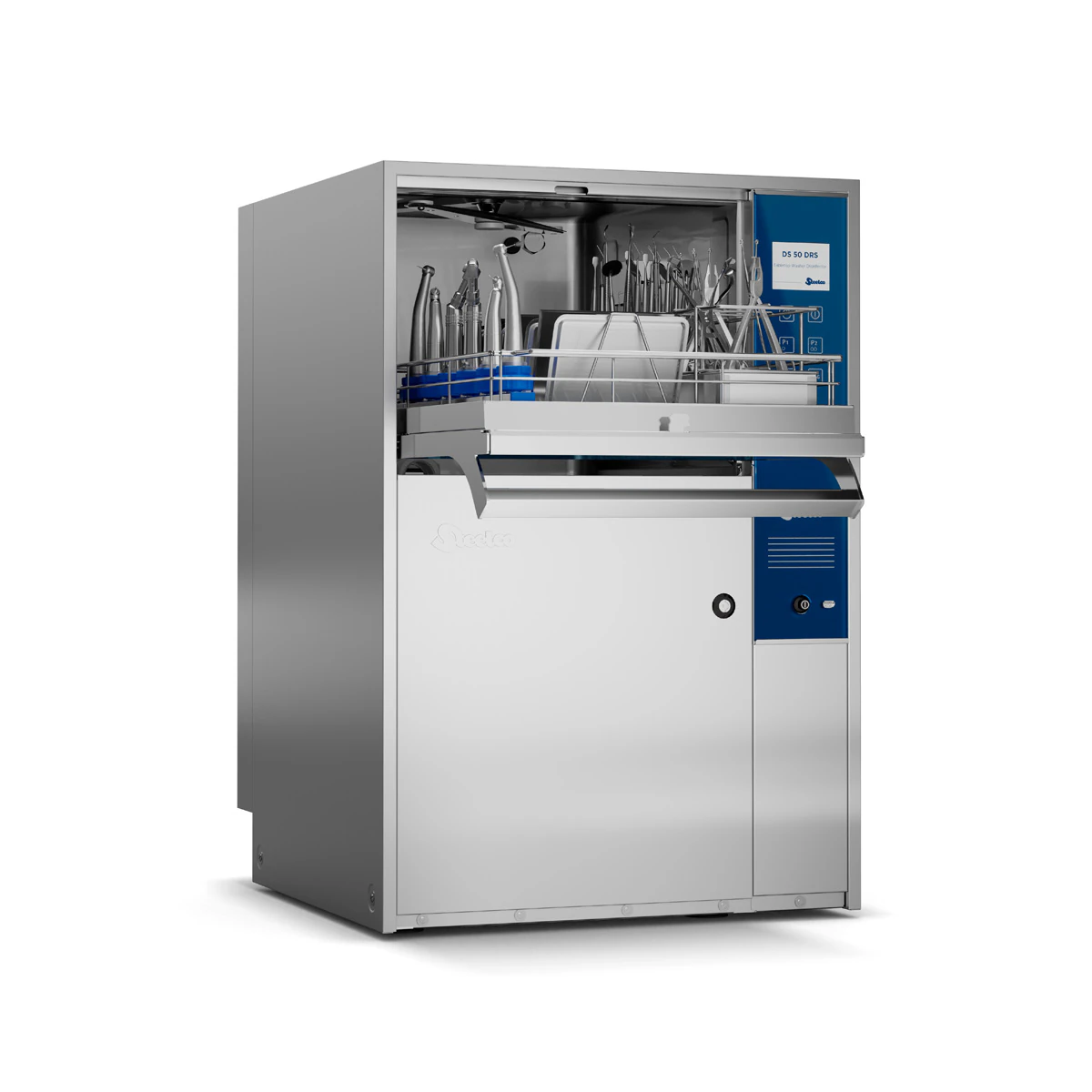

DS 50 Steelco Washer Disinfector open view

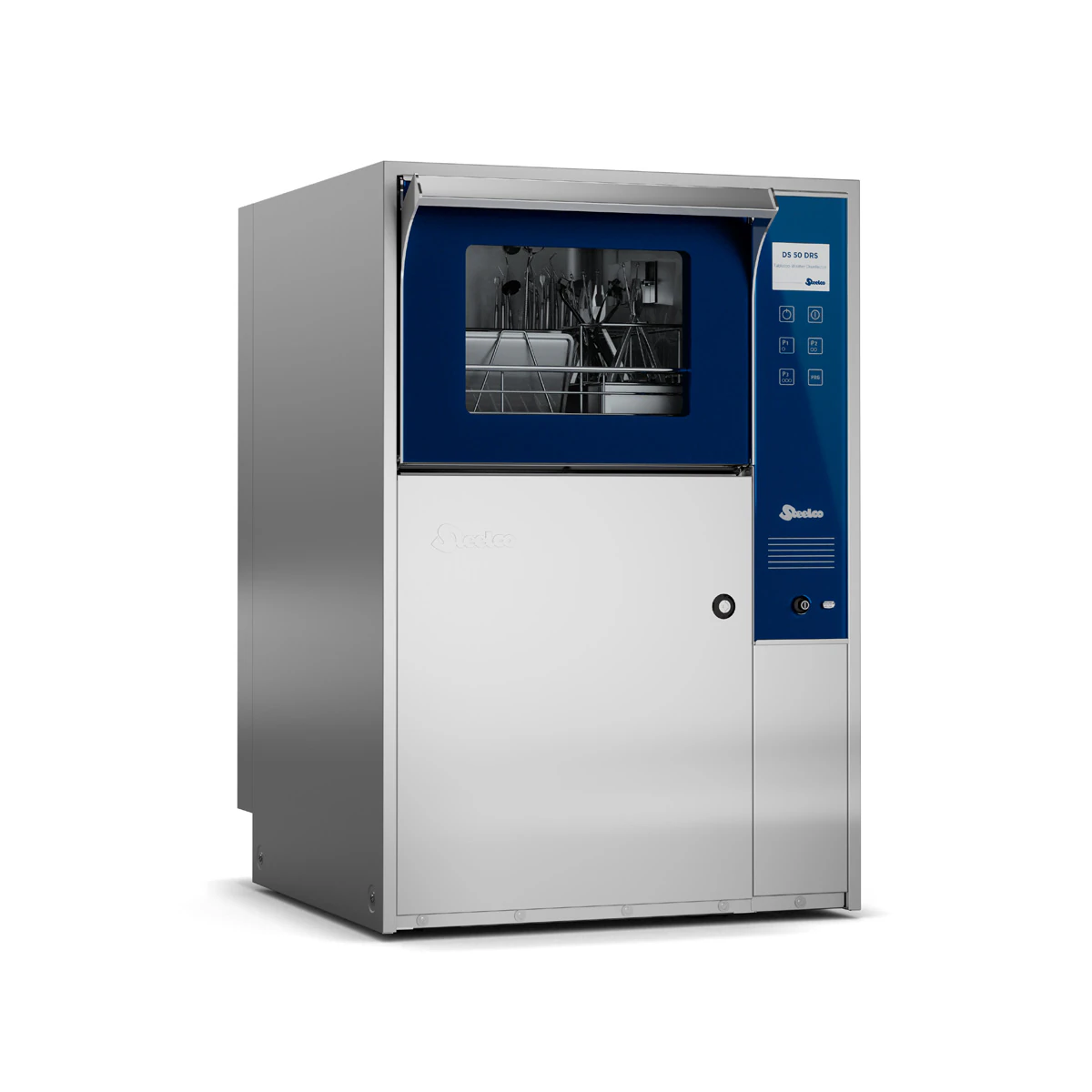

DS 50 Steelco Washer Disinfector side view
DS 50 Steelco Washer Disinfector front view
DS 50 Steelco Washer Disinfector open view
DS 50 Steelco Washer Disinfector side view

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Client 1

Key Features

  • Excellent Washing Results

    A heavy washing pump ensures a high flow rate combined with effective spray pressure.

  • Effective Thermal Disinfection

    Washing and disinfection temperatures are fully adjustable up to 93°C / 199 F. Temperature is monitored by two independent sensors.

  • Ergonomics

    The convenient design of the door level height allows the user a frictionless loading/unloading job.

  • Smart Filtering System

    Triple water filtering system is easily accessible from the washing chamber. It captures residue preventing re-circulation and extending the pump life.
Discuss The Range

Certifications

  • Steelco washer disinfectors are designed to comply with the European EN ISO 15883-1/2 guidelines on decontamination and are classified CE medical devices (Community Rule 93/42/EEC).
Discuss The Range

Configurations

Dimensions WxDxH

Chamber Volume (L)

Basket Volume (L)

Enquire
560 x 577 x 825~60~50

More Information

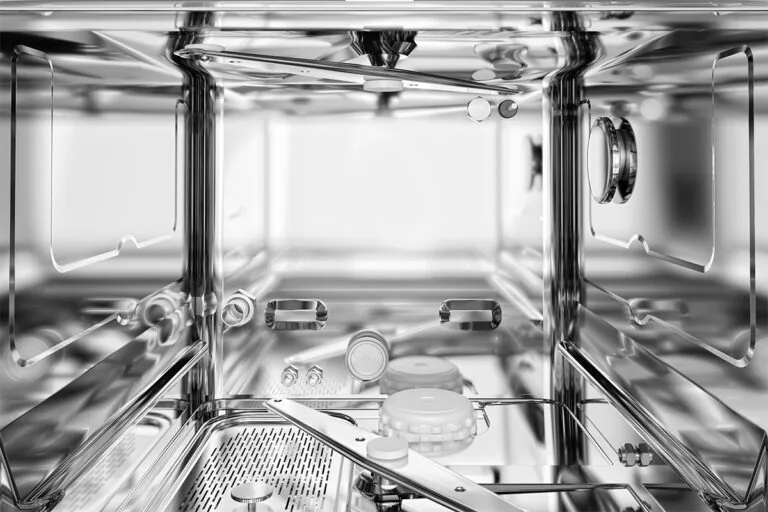

Hygienic Design

The washing chamber and spray arms as well as tank filters are made of high-quality AISI 316 L stainless steel (DIN 1.4404) for long-term reliability and cleanliness. The washing chamber has rounded edges to avoid any dirt traps, minimising the risk of microbial growth. On the bottom and the top of the chamber, the two rotary spray arms ensure optimal cleaning efficacy. Effortless cleaning and maintenance thanks to easily disassembling washing components.

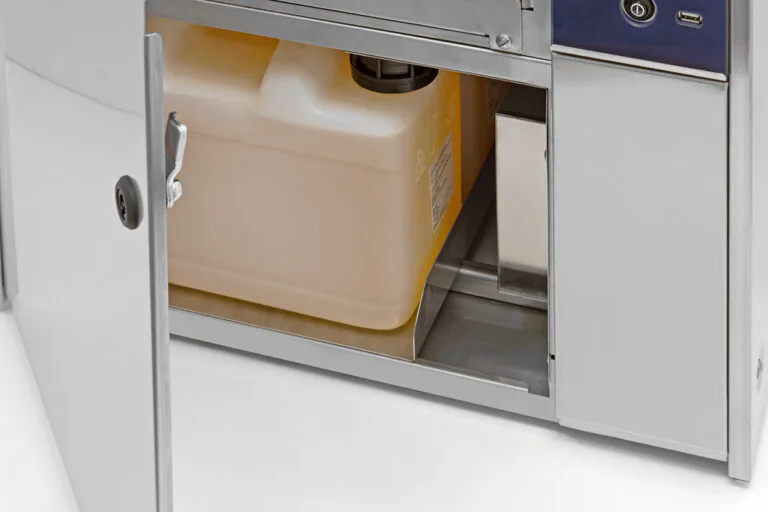

Integrated Chemical Dispenser and Storage System

Built-in automatic liquid dispenser for detergent. A second automatic liquid dispenser typically used for rinse aid chemicals is available as an option. Chemical tanks are conveniently integrated into the front panel and provided with a quantity inspection window.

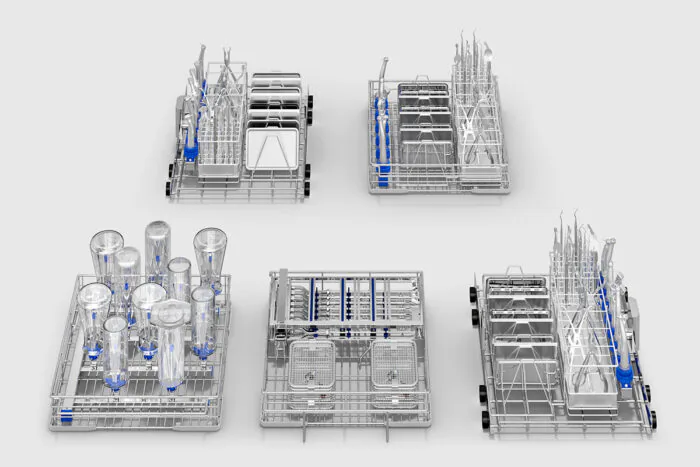

Comprehensive Range of Accessories

Baskets, inserts, trays—a carefully thought-through selection of accessories is available for our series of washer-disinfectors. Designed to meet the different needs of our clients, suitable both for the smaller dental instruments and for the wider surgical ones.

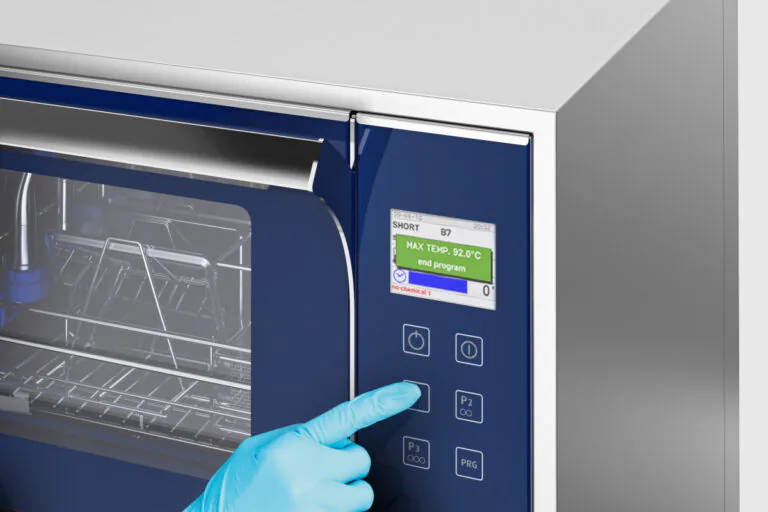

Soft-Touch Control Panel

High safety and user-friendly soft-touch control system on glass panel with LCD colour display to visualise cycle status, with up to 40 programming options.1
