DS 500 Series

The DS 500 Series consists of Underbench Washer Disinfectors
In partnership with Steelco, Sychem’s DS 500 Series of compact under-counter washer-disinfectors is specially designed for installations where space is at a premium. The series represents the ideal aid for washing and thermal disinfection of all types of dental and surgical instruments, with a processing capacity for up to 8 DIN trays.

These next-generation washers share the washing technology of higher-throughput devices providing unmatched flexibility, and excellent cleaning, and drying efficacy. The models of the series are capable of injection washing and drying on up to two independent levels. The drop-down door provides a convenient loading and unloading platform for lower and dual injection wash carts.
Download Brochure

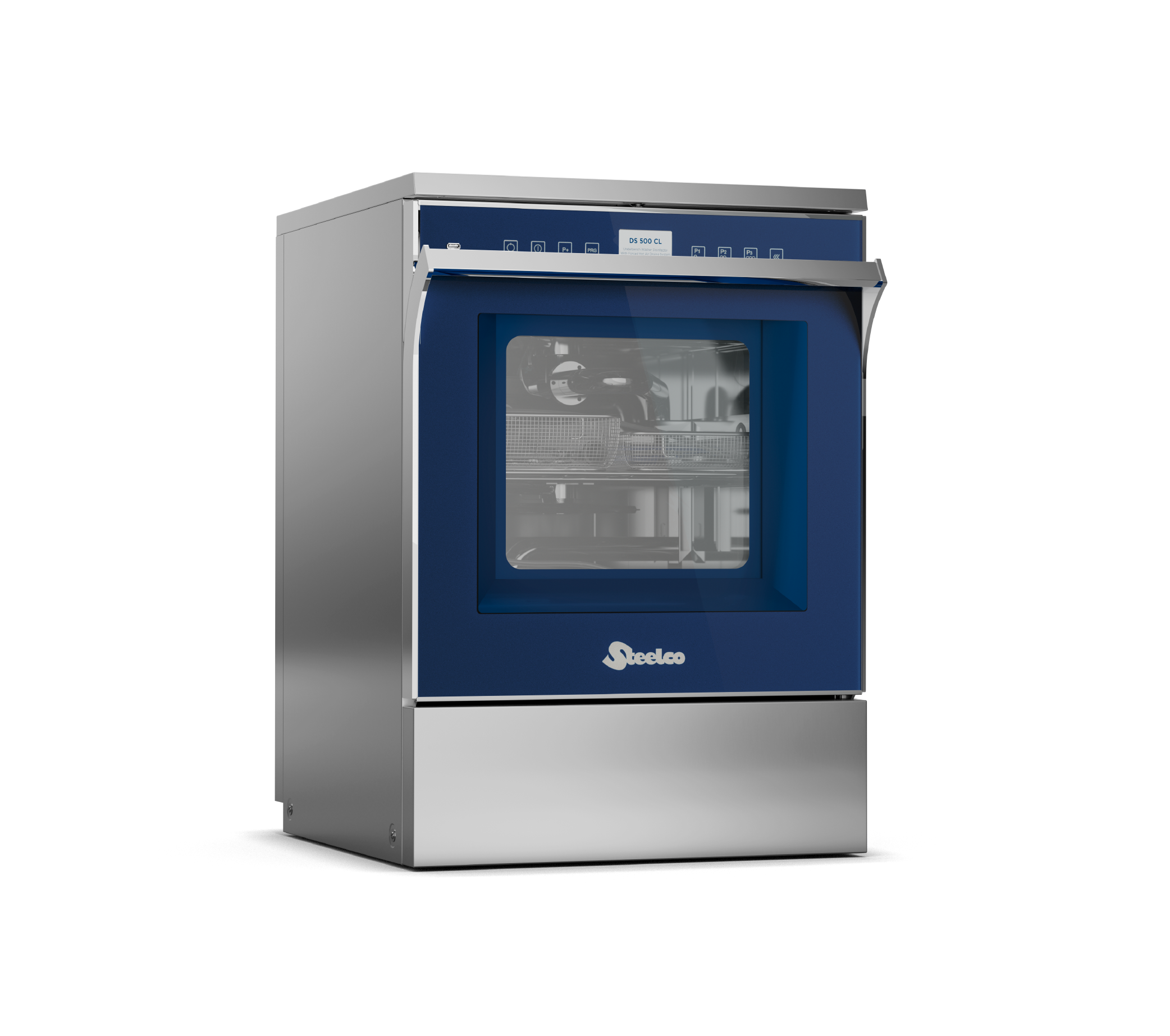

DA 500 Steelco Underbench Washer Disinfectors front view
DA 500 Steelco Underbench Washer Disinfectors side view
DA 500 Steelco Underbench Washer Disinfectors front view
DA 500 Steelco Underbench Washer Disinfectors side view

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Client 1

Key Features

  • Flexible Solutions

    Tailored to your needs, capable of processing up to 8 DIN trays

  • Efficient Washing

    Double washing pumps to ensure a high water flow rate combined with an effective spray pressure

  • Thermal Disinfection

    Washing and disinfection temperatures are fully adjustable up to 93°C. Temperature is monitored by two independent sensors

  • Steam Condenser

    Standard steam condenser preventing vapours from entering the washing area.

  • Double Injection Connection

    Two injection connections for washing and drying allowing the use of upper, lower, and dual injection wash carts with up to four loading levels

  • Drying Efficacy

    A built-In HEPA 14 filtered forced air drying system providing even and fast drying of surgical instruments. It allows for adjustable time and temperature settings, optimizing cycle duration and energy consumption
Discuss The Range

Certifications

  • Steelco washer disinfectors are designed to comply with the European EN ISO 15883-1/2 guidelines on decontamination and are classified CE medical devices (Community Rule 93/42/EEC).
Discuss The Range

Configurations

Model

Dimensions WxDxH (mm)

Chamber Volume (L)

Basket Volume (L)

Load Capacity (DIN)

Enquire
DS 500 SC / SCL / CL600 x 630 x 840~171~151Up to 8
DS 500 DRS900 x 630 x 850~171~151Up to 8

More Information

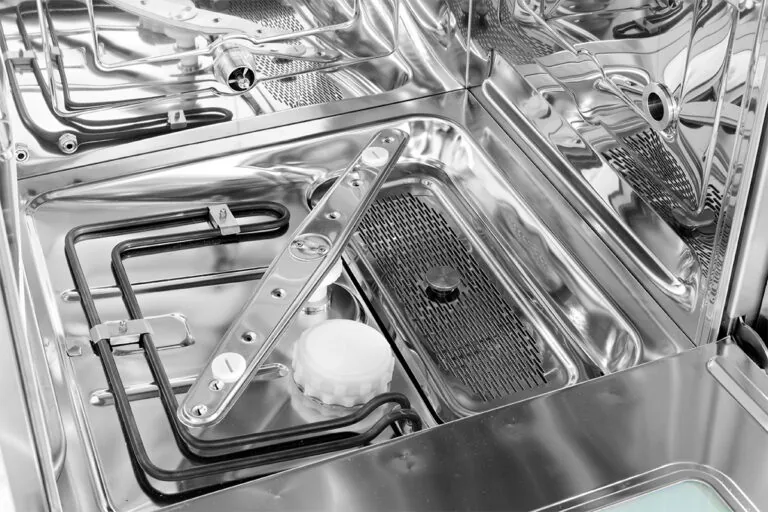

Hygienic Design

The washing chamber and spray arms as well as tank filters are made of high-quality AISI 316 L stainless steel (DIN 1.4404) for long-term reliability and cleanliness. The washing chamber has rounded edges to avoid any dirt traps, minimising the risk of microbial growth. On the bottom and the top of the chamber, the two rotary spray arms ensure optimal cleaning efficacy. Effortless cleaning and maintenance thanks to easily disassembling washing components.

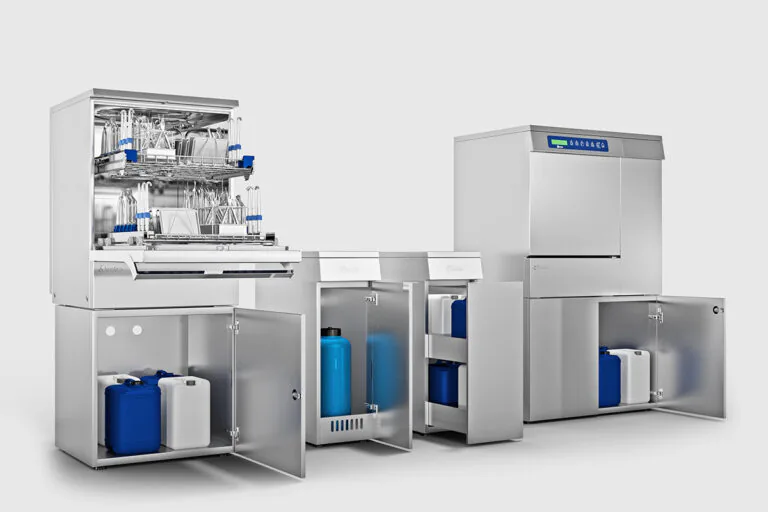

Stands and Side Cabinets

Different models of 300 mm / 11.81″ wide side cabinets are suitable for:

-Boiler for DI water preheating (cabinet and washer-disinfector are manufactured as a single 900 mm wide unit).

 -Purification system for DI water supply.
– Up to four 5 lt / 0.17″ chemical containers.

Stands to improve ergonomics when the machine is not installed under the counter. The 600mm / 23.62″ height stands are equipped with doors for easy storage access to chemicals and accessories. The stand is recommended when the machine is equipped with the option of a boiler to preheat DI water and the needed booster pump.

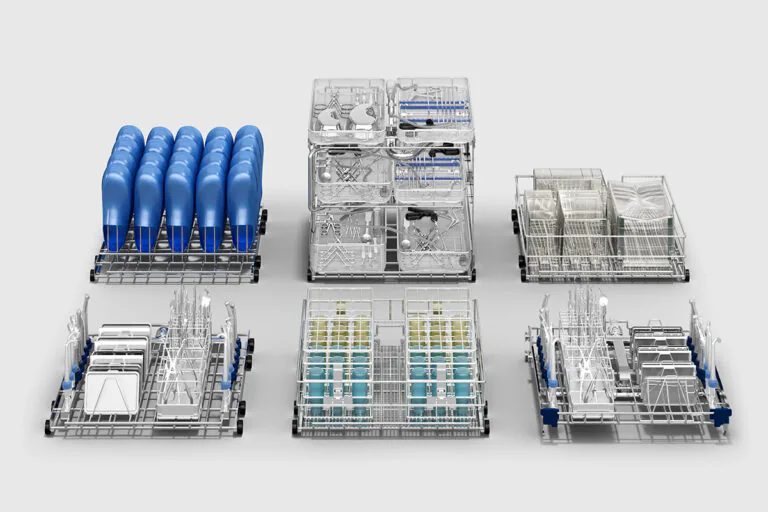

Comprehensive Range of Accessories

Sychem’s range of DS 500 series of washer-disinfectors is completed with a wide range of baskets, trolleys, inserts, and accessories designed to meet the different needs of customers and specifically designed for each individual application: surgical instruments, tools for microsurgery, hooves, containers, bottles.

Downloads

Steelco Washer Disinfectors for CSSDs

Steelco Washer Disinfectors for CSSDs

Download
