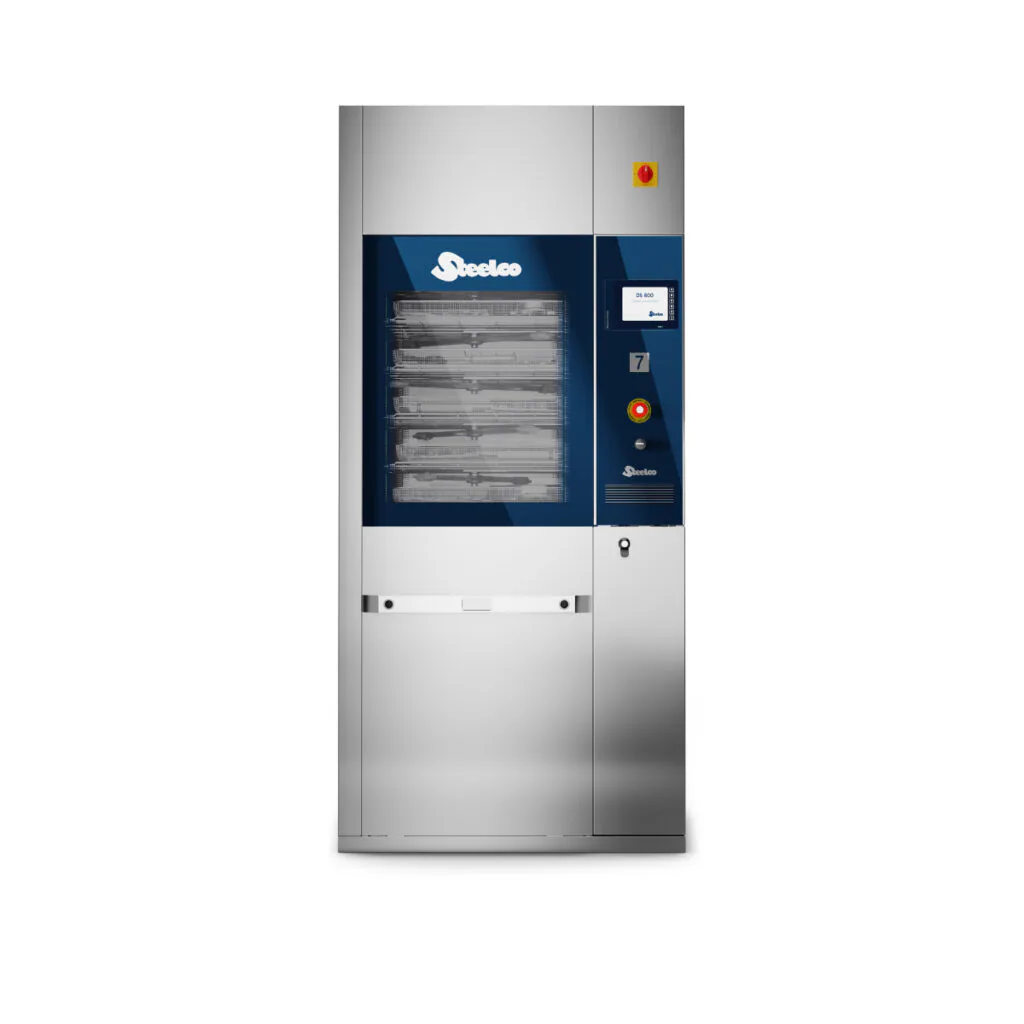

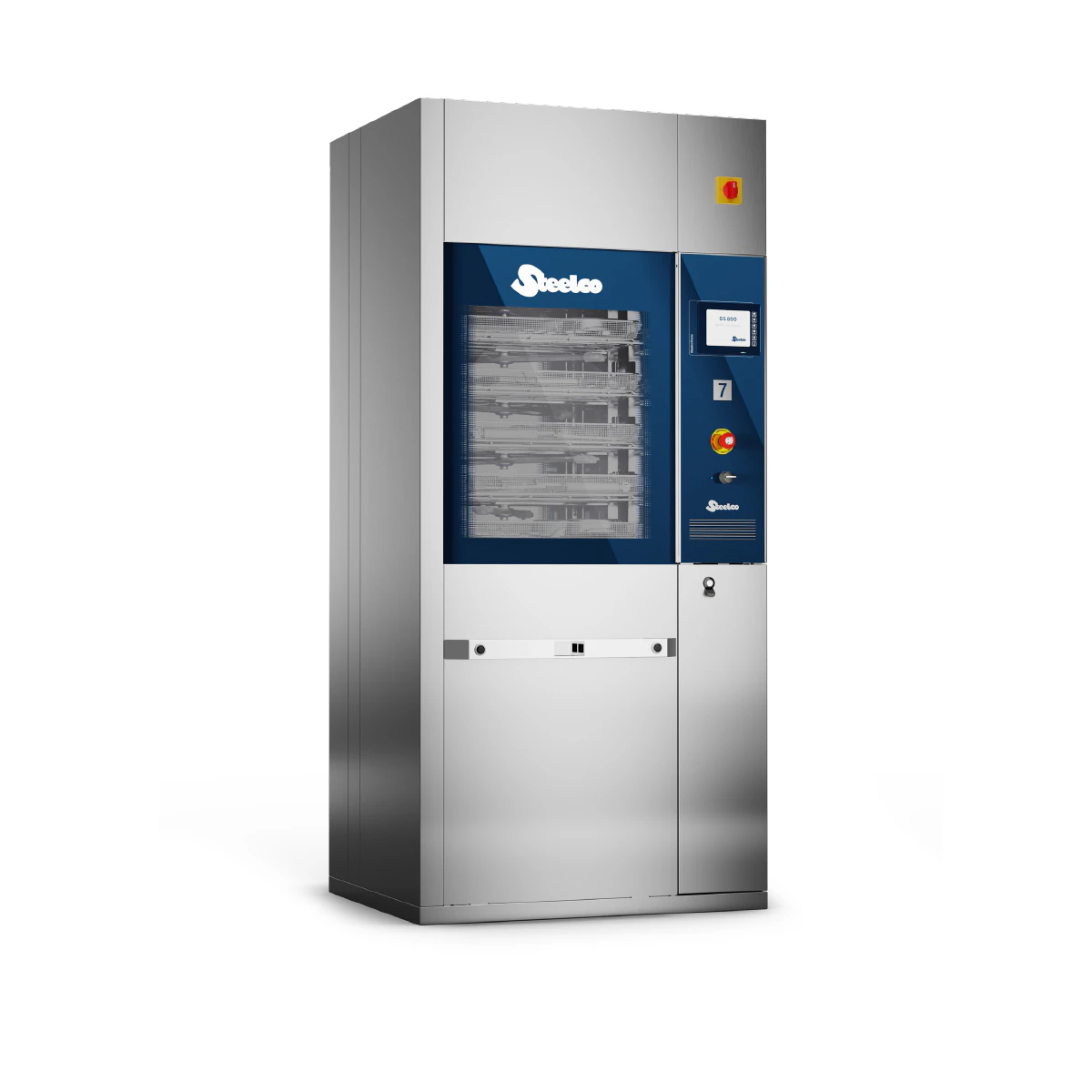

DS 800 Series

The DS 800 is a washer disinfector with up to 12 DIN Trays

In partnership with Steelco, Sychem’s DS 800 Series of washer-disinfectors offers a complete washing, thermal disinfection treatment, and drying of all types of surgical instruments, with a processing capacity for up to 12 DIN trays. Specially designed to meet the increasing reprocessing needs of CSSD, the DS 800 Series of reliable, high-performance machines guarantees efficient and tested washing and thermal-disinfection results. HEPA-filtered H14 forced air drying distribution grants a perfect distribution of air on all chamber parts and basket levels, ensuring the complete inside and outside drying of all surgical instruments and tubes, the reduction of overall reprocessing time, and maximum safety.

Our DS 800 Series is available as a single door or double door for barrier application versions. Loading and unloading washing cart operations can be done at an ergonomic height using manual or automatic transfer conveyors. This series of washer-disinfectors range can be equipped with Steelco ATS (Automatic Transfer System) automation for washing loading racks.

Dimensions (mm)

Chamber Volume (L)

Wash Cart Volume (L)

Load Capacity

Download Brochure

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Key Features

Effective Thermal Disinfection

Washing and disinfection temperatures are fully adjustable up to 93°C, monitored by two independent sensors.
Innovative Water Distribution System

An innovative and powerful vertically installed washing pump ensuring a high water flow rate combined with effective spray pressure.
Space-Saving Sliding Down Door

Equipped with a motorized space-saving vertical sliding-down door, an ideal option to ensure high washing and drying standards in every situation when space is at a premium.
Smart Filtering System

Triple water filtering system – easily accessible from the washing chamber – captures residue preventing re-circulation and extending the pump life.
Excellent Drying Result

Built-In HEPA 14 filtered forced air drying system ensuring the complete internal and external drying of all the glassware. Adjustable time and temperature settings for the optimisation of cycle duration and energy consumption.
Traceability

RS 232 port for printer connection to monitor and validate washing phases. USB port for historical cycle data download and software upgrades.

Discuss The Range

Certifications

Steelco Washer- Disinfectors are designed and constructed to comply with the latest European and UK guidelines on decontamination. EN ISO 15883-1/2, CEN ISO/TS 15883-5. Steelco Washer-Disinfectors are classified CE Medical Device (Community rule 93/42/CEE) code nr. 0051.

Discuss The Range

Configurations

Dimensions WxHxD (mm)	Chamber Volume (L)	Wash Cart Volume (L)	Load Capacity	Enquire
900 x 740 x 1940	~350	~280	Up to 12 DIN 1/1 trays

More Information

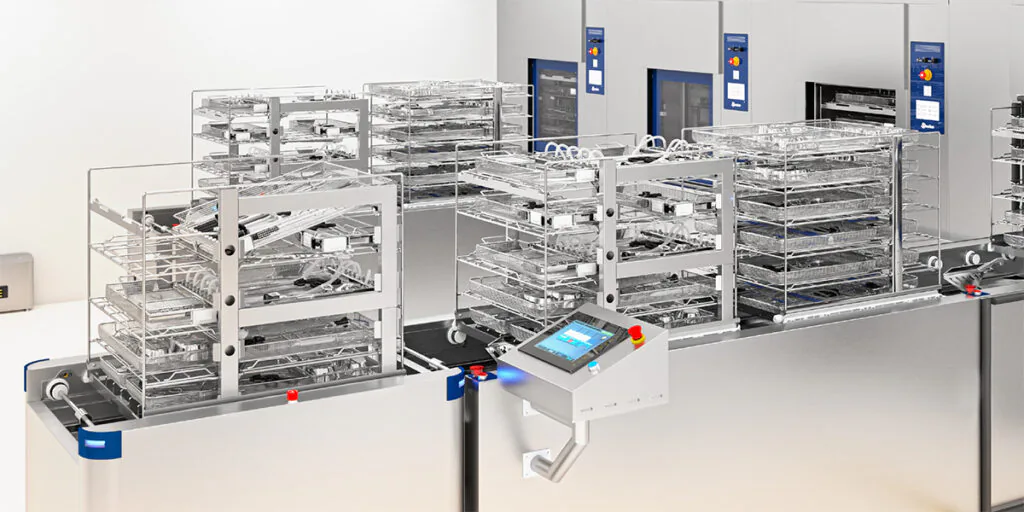

Automatic Transfer System

DS 800 washer-disinfectors can be integrated with Steelco ATS-Automatic Transfer System, an automation system for loading, unloading, and transport phases, specially designed for the processing departments where time and space are at a premium. Its high flexibility and modularity make it a perfect solution for optimal workflow regardless of the facility’s size.

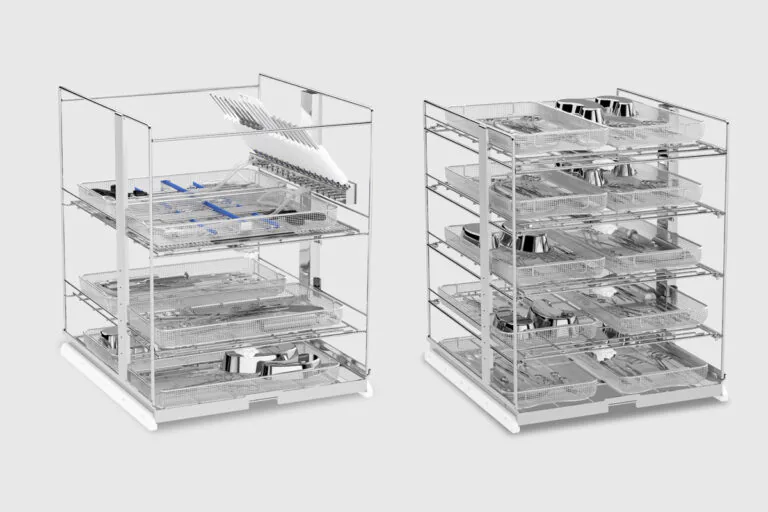

Comprehensive Range of AccessoriesCycle Selection

Sychem offers a complete range of accessories specially developed to meet the different treatment needs of small surgical departments, all the way up to larger central sterile supply departments. Dedicated washing carts allow several applications: surgical and MIS instruments, anaesthesia and ophthalmology instruments, containers, OP rubber shoes, etc.
