LAB 610 G2

High capacity on a small footprint
The LAB 610 G2 is a large-capacity frontal-loading glassware washer that satisfies medium-size facility needs. This unit is capable of injection washing and drying up to 3 baskets at 4 different levels, providing maximum flexibility through multiple chamber configurations depending on the height of the loaded items.
Thanks to an intelligent use of space with the SmartLoad system, its capacity has been increased by more than 50% when if compared with the previous model.

Thanks to a variable-speed pump, it is able to adjust circulation pressure and water consumption to the load in hand.

Steelco laboratory washers offer versatility, safety, high performance, and process traceability with low total life costs.
Download Brochure
steelco-lab-610-g2-front

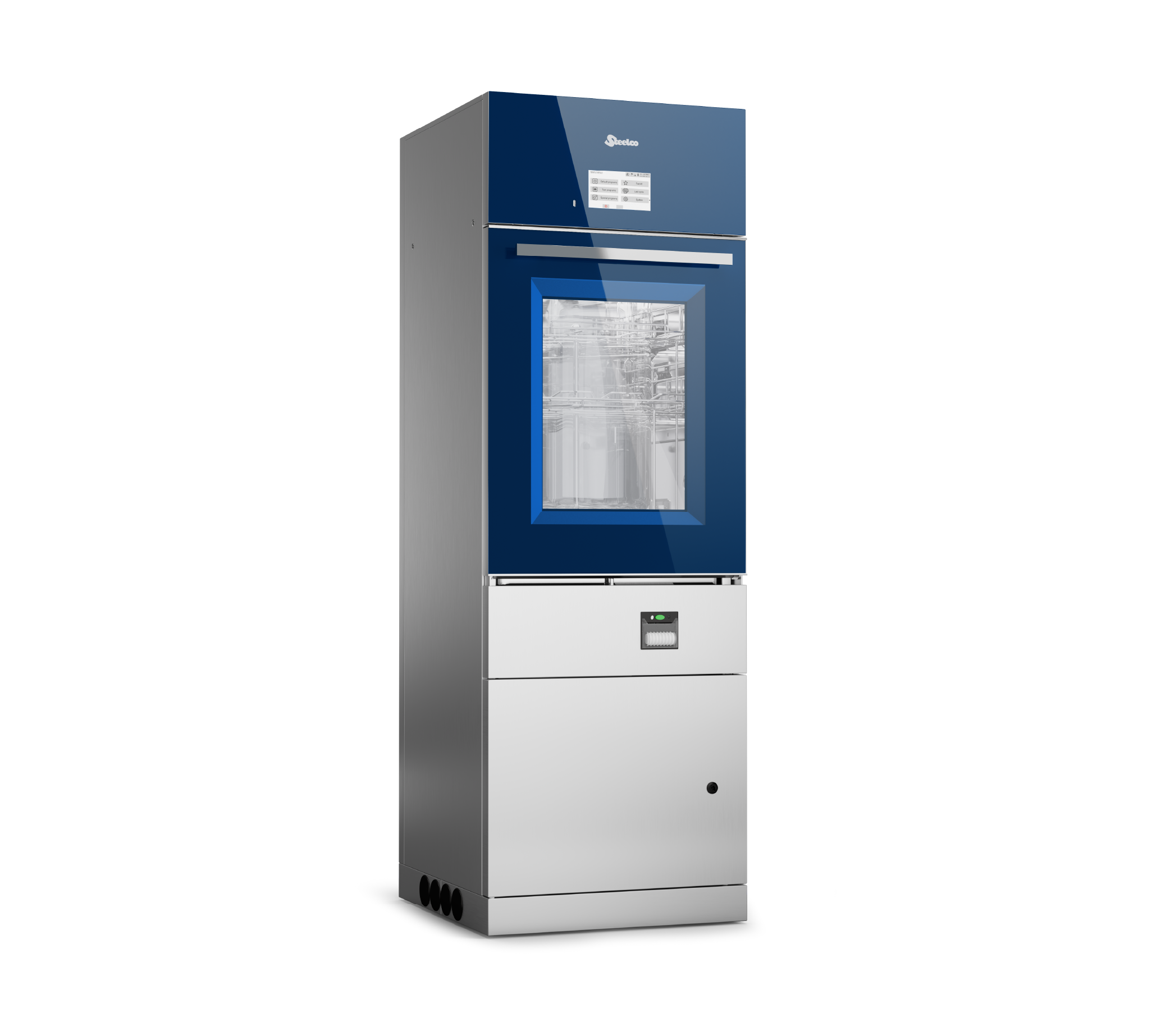

steelco-lab-610-g2-side

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Client 1

Key Features

  • Flexible Solutions

    The combination of SmartLoad and SimpleLoad offers users a wide range of loading alternatives.

  • Eco Friendly Efficiency

    The LAB 610 G2 is designed to reduce its environmental impact. Both during its life and at its end it is possible to benefit of its eco-friendly components. Optimal washing results are guaranteed.

  • Optimised Process Speed

    Our focus is to provide customers with the fastest possible processes in compliance with local and international standards. Fast Cycle and humidity sensor options provide savings both in time and energy.

  • Drying Efficacy

    Built-in HEPA 14 filtered forced air drying system with adjustable temperature and time settings helps to ensure the complete internal and external drying of all the glassware.

  • User Friendly Large HMI

    A 7″ colour touch display is integrated into the front panel of the glasswasher.

  • Flexibility in After Sale Options

    In a changing world, your needs may also change. Steelco offers retrofit kits to adapt to the demands dictated by change.
Discuss The Range

Certifications

  • Steelco Laboratory glassware washers comply with the currents European directives and standards as follow: 2006/42/EC, 2014/35/EU, 2014/30/EU, and 2011/65/EU Directives, EN 61010-1, EN 61010-2-040, EN 61326-1, EN ISO 15883-1 current standards.
Discuss The Range

Configurations

Overall Dimensions WxDxH (mm)

Chamber Volume (L)

Enquire
Height including plinth – 650 x 700 x 1940~250

More Information

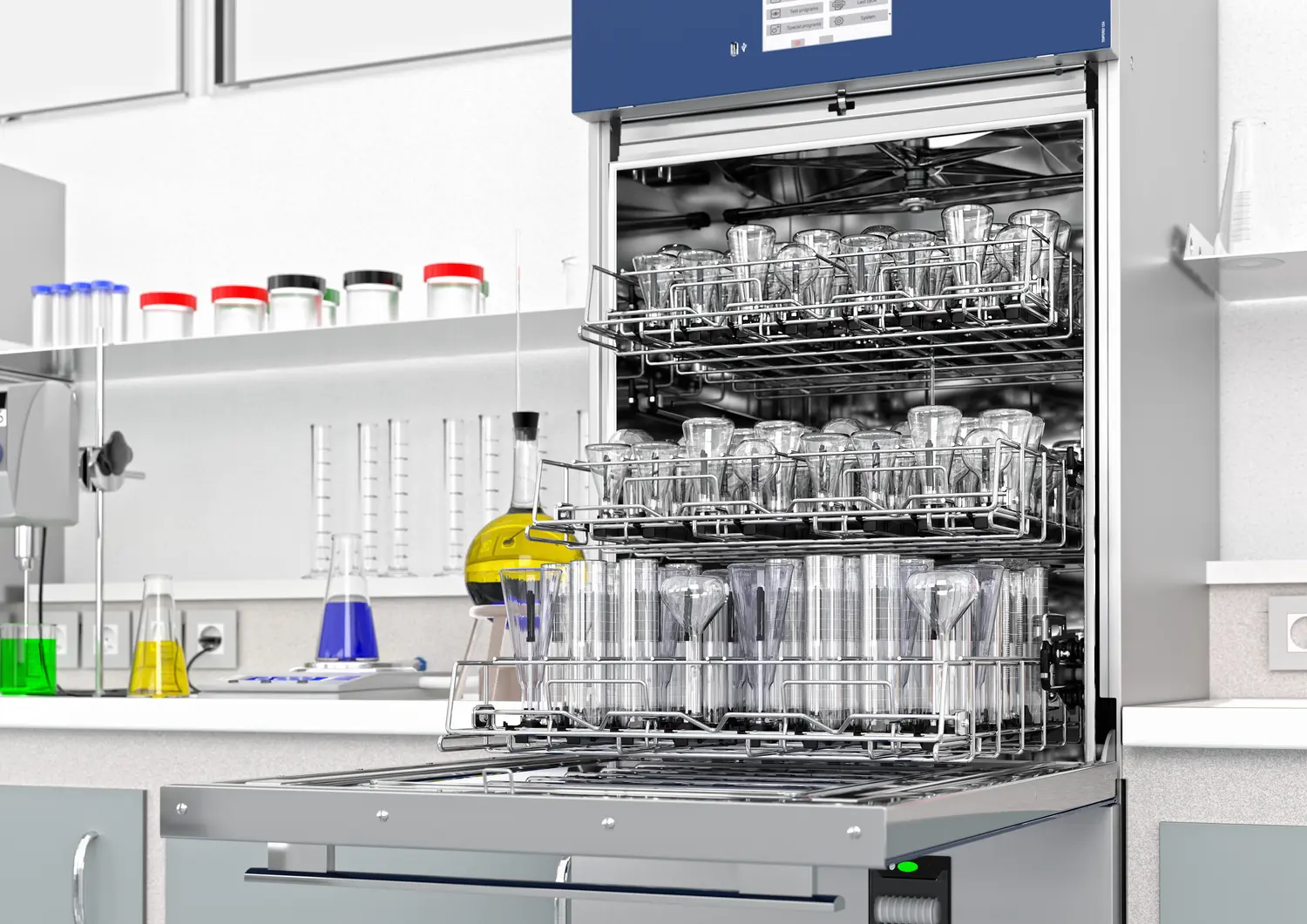

Increased Capacity

The new LAB 610 G2 gives an opportunity to combine your baskets with various modules allowing the correct positioning of the laboratory glassware. The capacity of the device has been increased by more than 50% compared with the previous model.

Up to 192 100ml bottles.

Small Footprint

The new LAB 610 G2 is a compact solution that helps to drastically reduce the necessary footprint while granting the best treatment efficacy and the highest safety standards.

It is conceived as a compact and “plug and play” device needing just an electrical supply, water inlets, and a drain. Thanks to its reduced overall dimensions, it can overcome architectural limitations such as door passages or lifts. It provides a plinth on rollers for easy transfer and positioning.

Speeding up saving time and energy

Steelco offers the perfect solution to make your laboratory more efficient.

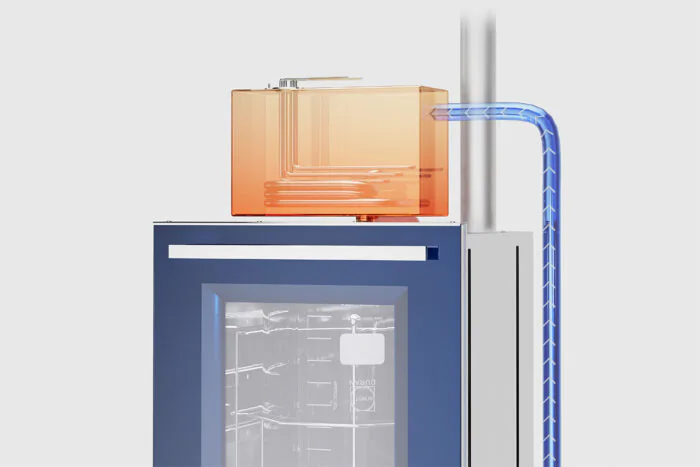

Thanks to the availability of the Fast Cycle option‘s pre-heated tanks, it is possible to save washing cycle time and to have the reprocessed items available sooner without diminishing process quality. The heating-up time of the final rinse phase can be reduced by 80% in average use conditions.

The humidity sensor option allows for reducing drying time according to different loads.
If you combine these advantages, you save both time and energy

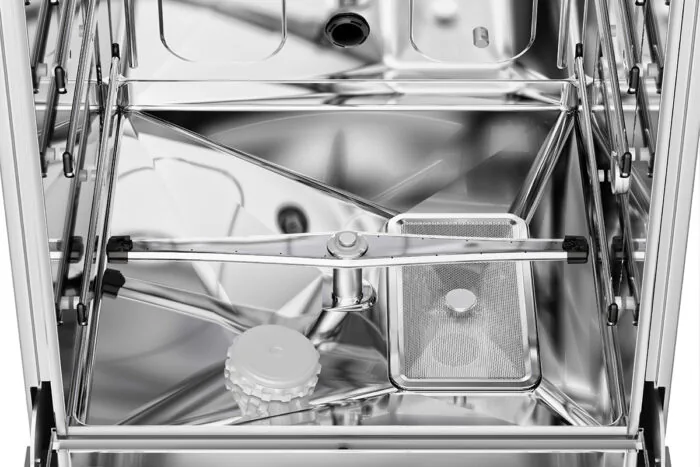

Hygenic Design and Water Filtration

Designed and constructed with smooth edges and corners, removing areas where soil could accumulate and lead to bacterial growth. Sump fine filter mesh reduces the size of the debris that can recirculate to less than 0.2 mm and eliminates the need to equip the rotating washing arms with open ends for inspection and cleaning access, thereby saving time.

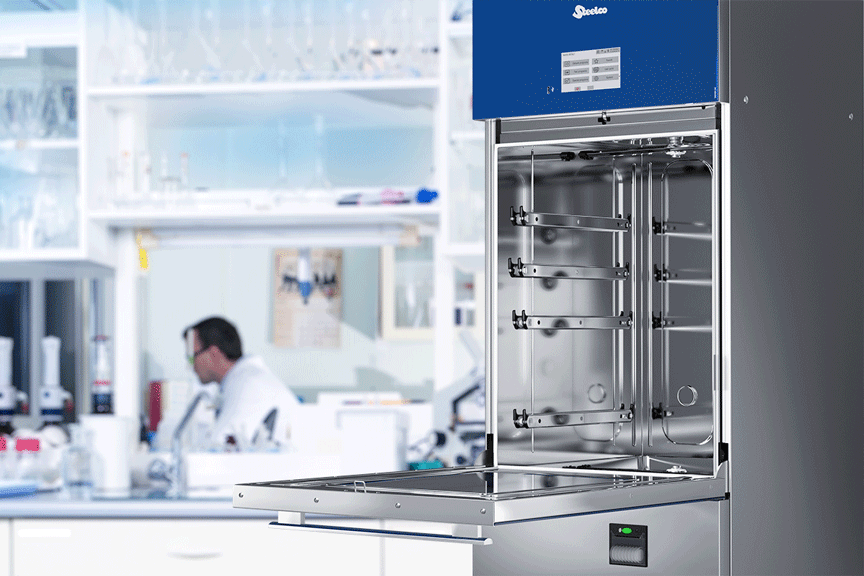

SmartLoad system

The new generation of LAB 610 makes your loading operations even simpler. The baskets’ flexibility allows their use on any level, enabling the operator to customise the load according to the needs. Furthermore, the washing chamber enables to use up to 3 out of four levels simultaneously. Loading is made fast and easy with a wide range of standard and configurable loading options.

Downloads

Steelco Glassware Washers Small & Medium

Steelco Glassware Washers Small & Medium

Download
