LC 80

The LC 80 is a high-capacity Trolley Washer Disinfector
Sychem’s LC 80 is a high-capacity washer-disinfector for the treatment of instrument containers and lids, plastic crates, basins, and surgical instruments. The device can also treat, case carts, transport-, storage-, and waste-trolleys or other bulky items with dedicated racks. The combination of high flow recirculation pumps and high-speed blowers for forced air drying provides the washer with high-performance cleaning and disinfection treatment with short cycle times ensuring high throughput.

Our LC 80 can be equipped with full visibility double HST glass or stainless steel sliding door(s). Available as single door or double door pass-through versions, this latter version is suitable for barrier installation to reduce cross-contamination by separating dirty areas from clean ones. With our LC 80 Trolley Washer Disinfector, you can choose two different chamber depths: the 2250 mm / 88.58″ and 3000 mm / 118.11″, according to your cleaning demand. A PLC microprocessor with a user-friendly HMI allows operators to refine the process and personalize the washing and disinfection programs.
Download Brochure

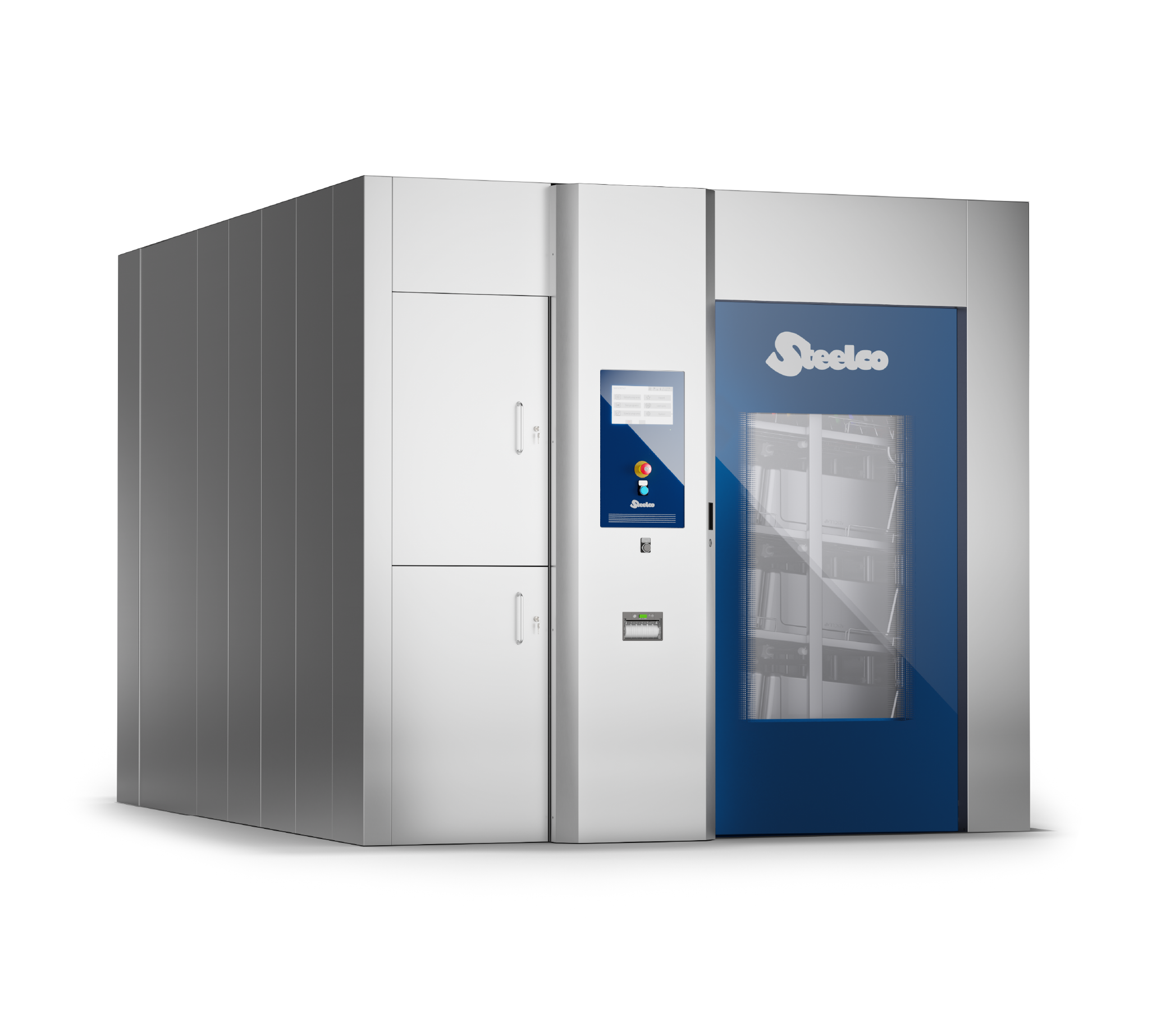

Steelco LC 80 front view

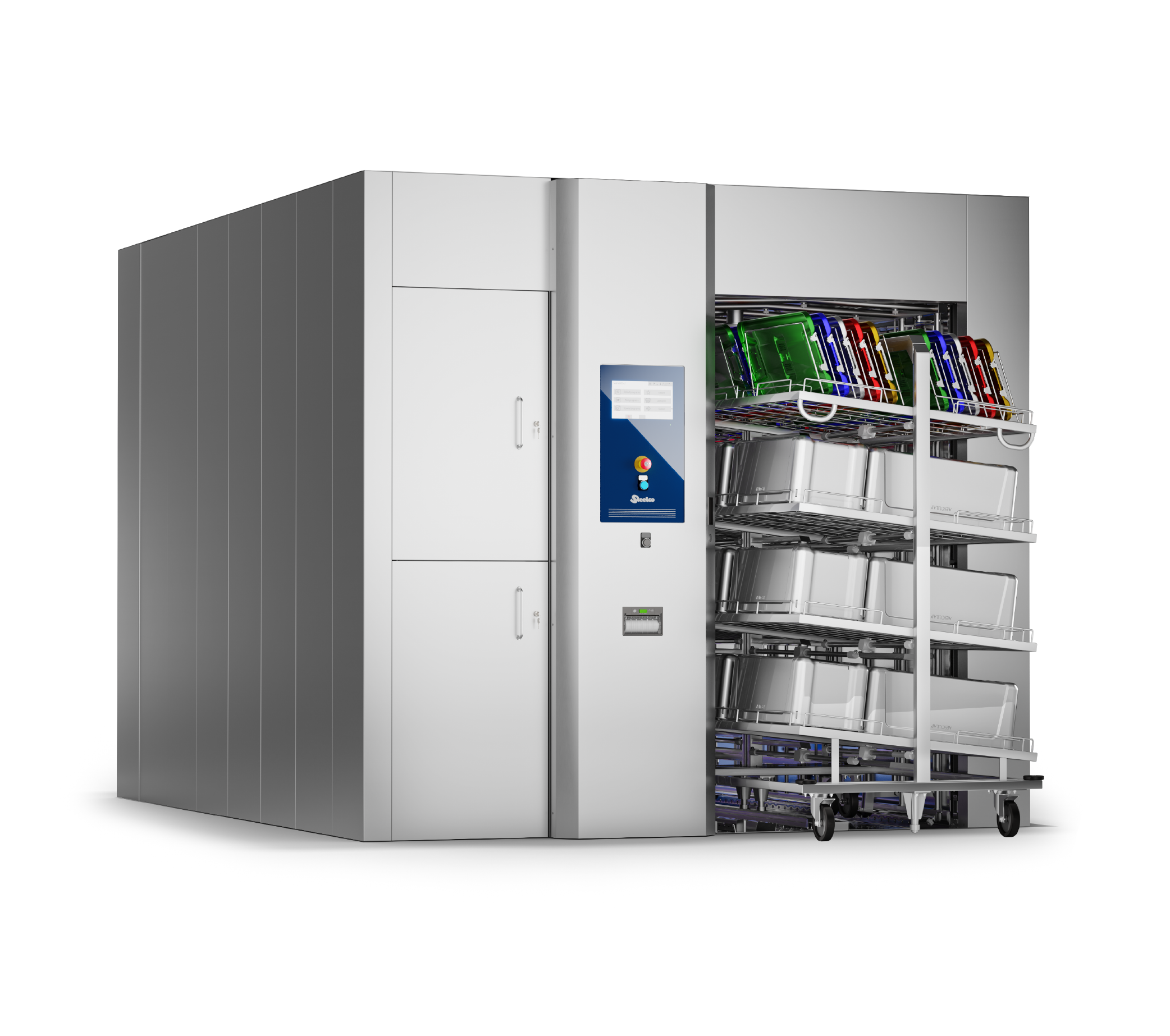

Steelco LC 80 open view
Steelco LC 80 side view
Steelco LC 80 front view
Steelco LC 80 open view
Steelco LC 80 side view

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Client 1

Key Features

  • Environmental Sustainability

    In addition to saving water, LC 80 efficient recovery system saves energy and chemicals. Depending on the configuration of the machine, it is possible to install more water and energy recovery systems, making the most of its capabilities.

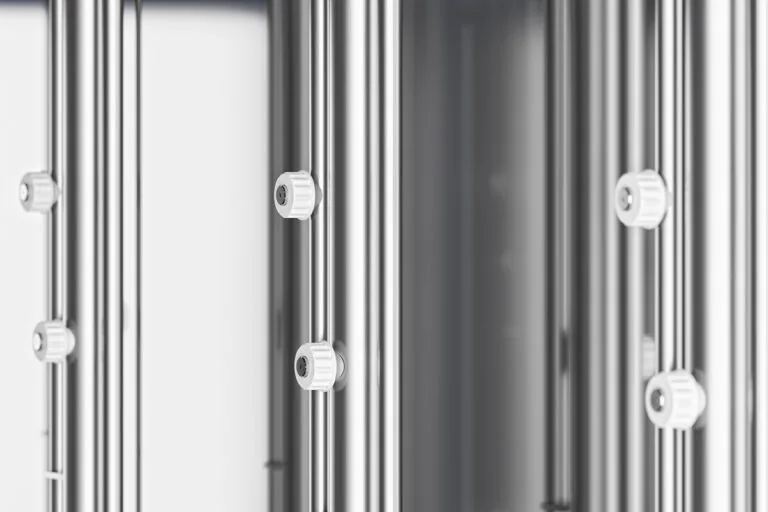

  • Optimal Cleaning

    Multiple horizontal oscillating pipes equipped with spraying nozzles on each washing chamber side ensure optimal wash surface coverage.

  • Effective Thermal-Disinfection

    Thermal disinfection is achieved by raising the temperature to 93°C/200°F and holding it for a programmable time. It is also possible to directly set the desired A0 value.

  • Smart Filtering System

    Three-level water filtration system allows for the capture of residues during the recirculation of the washing filter thanks to flush self-cleaning final filter, thus avoiding the risk of clogging and protecting the recirculation point.

  • Drying Efficacy

    Built-In HEPA 14 filtered forced air drying system ensuring the complete internal and external drying of all the glassware. Adjustable time and temperature settings for the optimisation of cycle duration and energy consumption.

  • Traceability:

    USB port printer connection for machine data backup. Remote monitoring and data management with the optional SteelcoData traceability software.
Discuss The Range

Certifications

  • CE certified machine following the 93/42/EEC directive.
  • Thermal disinfection version EN ISO 15883-1/2 compliant.
  • Chemical disinfection version EN ISO 15883-1/6 compliant.
Discuss The Range

Configurations

Model

Dimension WxDxH (mm)

Chamber Capacity

Enquire
LC 80/22500 x 2550 x 2410Up to 28x STU
LC 80/32500 x 3300 x 2410Up to 42x STU

More Information

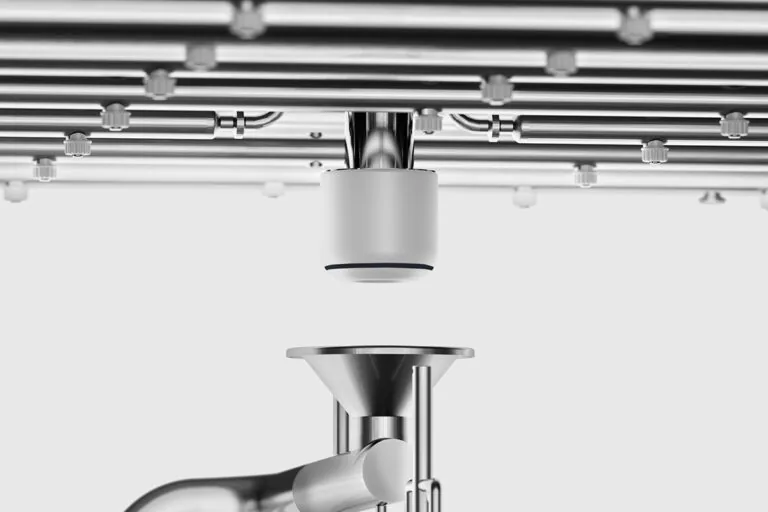

Automatic Manifold Connection

Automatic Manifold Connection is an exclusive patented solution that allows the load of trolleys equipped with washing arms or washing injection systems. This unique option permits the validated treatment of surgical instruments and items with hollow surfaces, extending the trolley washer function range by making it a flexible device that can face CSSD throughput peaks as well as being used as a safe productivity backup.

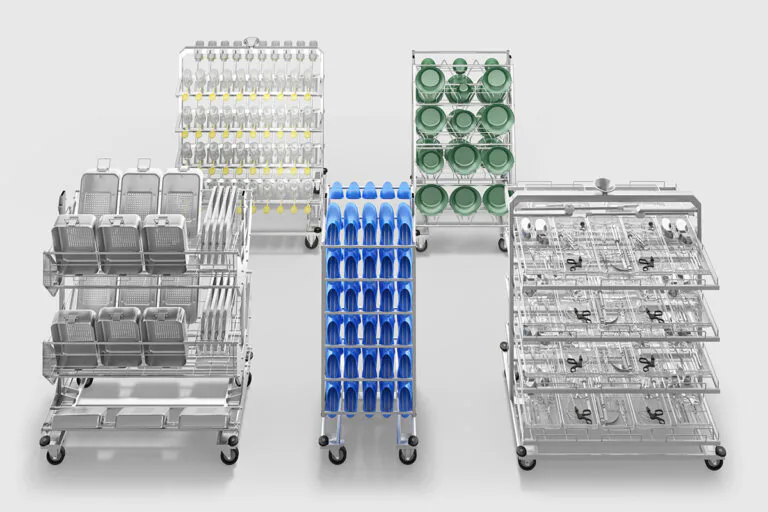

Unparalled Load Capacity

LC 80 has unmatched load capacity and can reprocess up to 56 instrument trays per cycle in the 3000mm chamber length version and up to 28 in the standard version. Thanks to dedicated loading trolleys it is possible to load up to 80 clogs in the 3000mm chamber length version and up to 40 in the standard version making LC 80 the washer-disinfector with the greatest throughput available in the market.

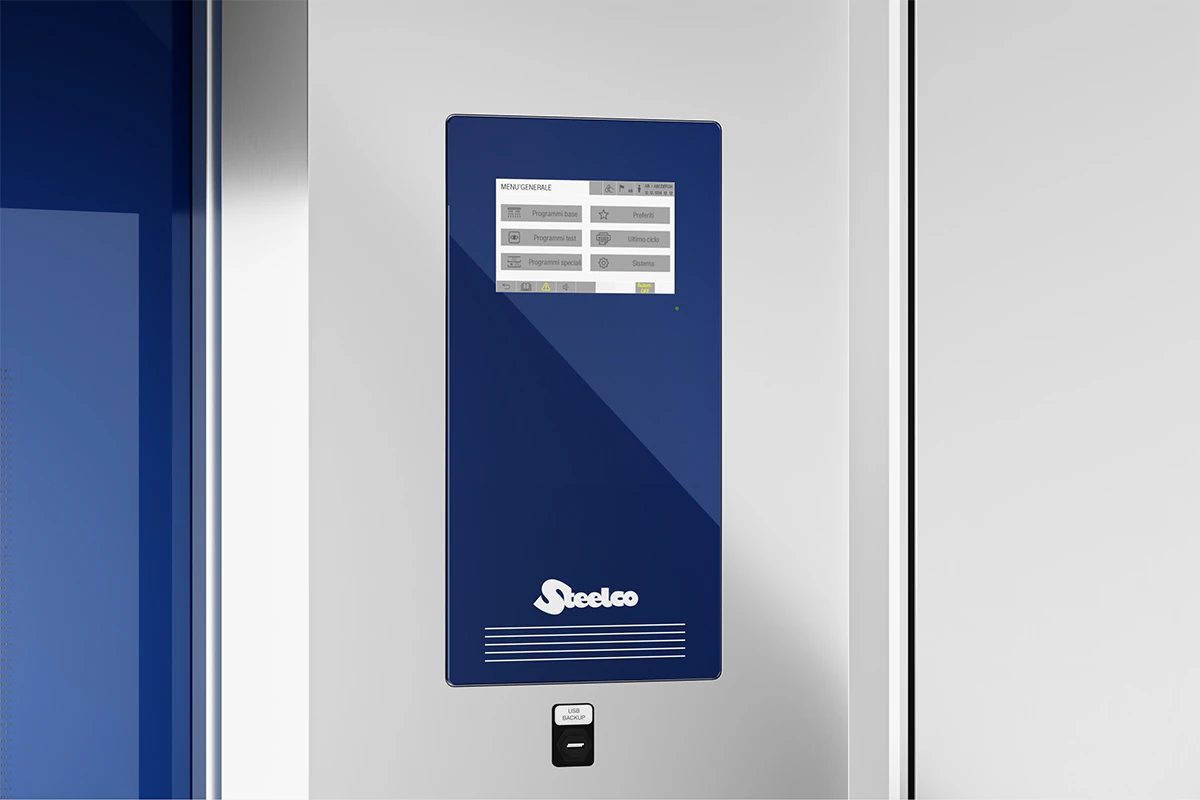

7" Intuitive HMI

A Control System with a PLC touch screen panel constantly monitors and displays the current cycle status and alarms, allowing for 65 programming options. The user-friendly 7″ colour touchscreen supports operators in every step of their interaction with the device with straightforward and easy-to-understand operation tasks.

Double Configuration

Thermal Disinfection

– Faster water loading phases granting more time for the process.

– Suitable for the treatment of transport, storage, and waste trolleys up to 93°C / 200F, treating instrument containers, lids and other bulky items.

Chemical Disinfection

– Improved process efficiency by eliminating carryover in the rinsing phase, assuring complete disinfection with a very short cycle time.

– Suitable for reliable cleaning to items typically treated without a validated process.
