LC PH Series

Pharma-Grade Rack, Bin & Large Parts Washers
Steelco’s LC PH Series is a robust range of pharmaceutical-grade cabinet washers engineered for the high-throughput cleaning and drying of large volumes, oversized items, and bulky components used in biotech and pharmaceutical manufacturing. With chamber capacities from 4,250 to 10,500 litres (150 to 370 cu ft), and fully custom dimensions available, this series offers exceptional performance, flexibility, and compliance for even the most demanding cleaning applications.
Download Brochure
lc-ph-front-closed

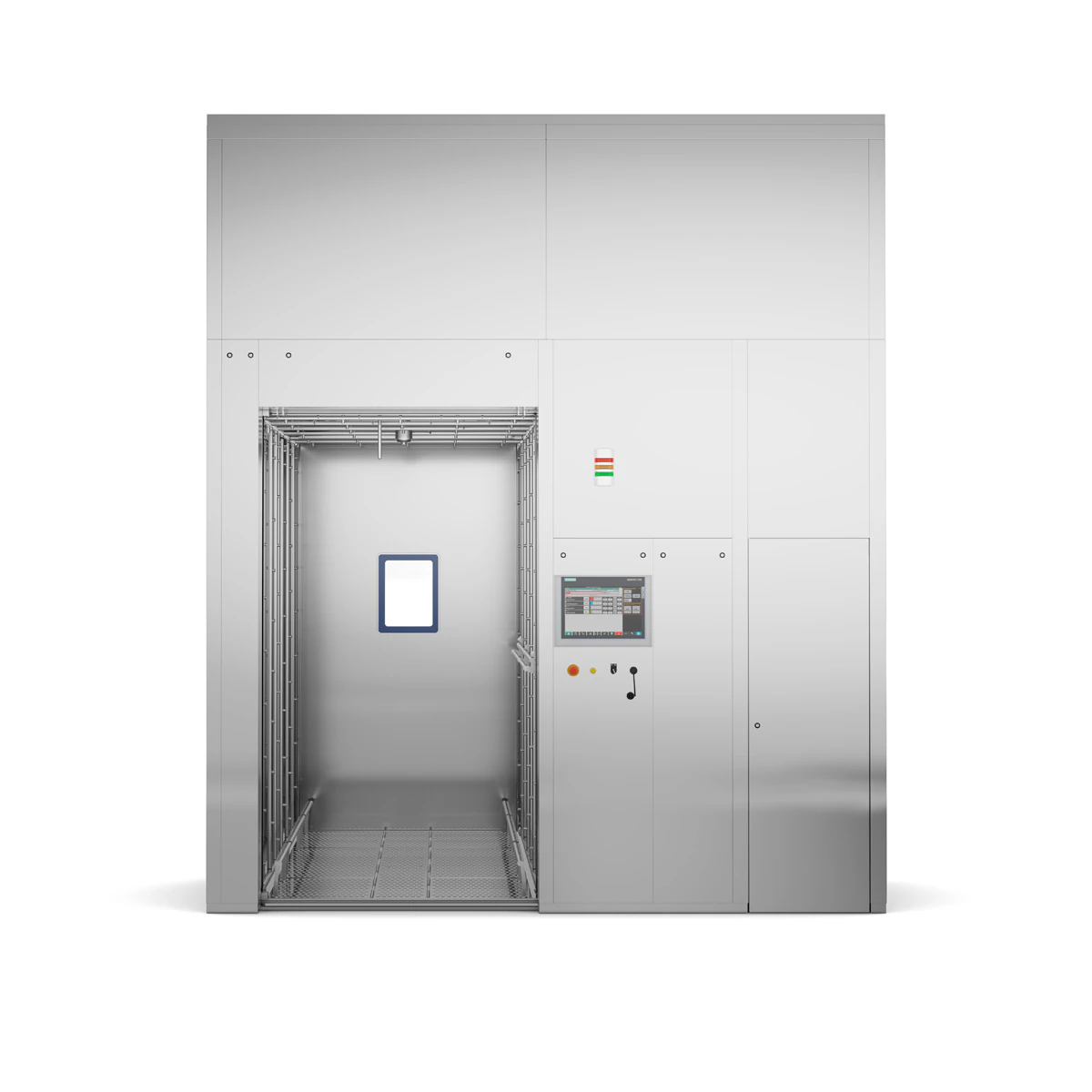

lc-ph-front-open

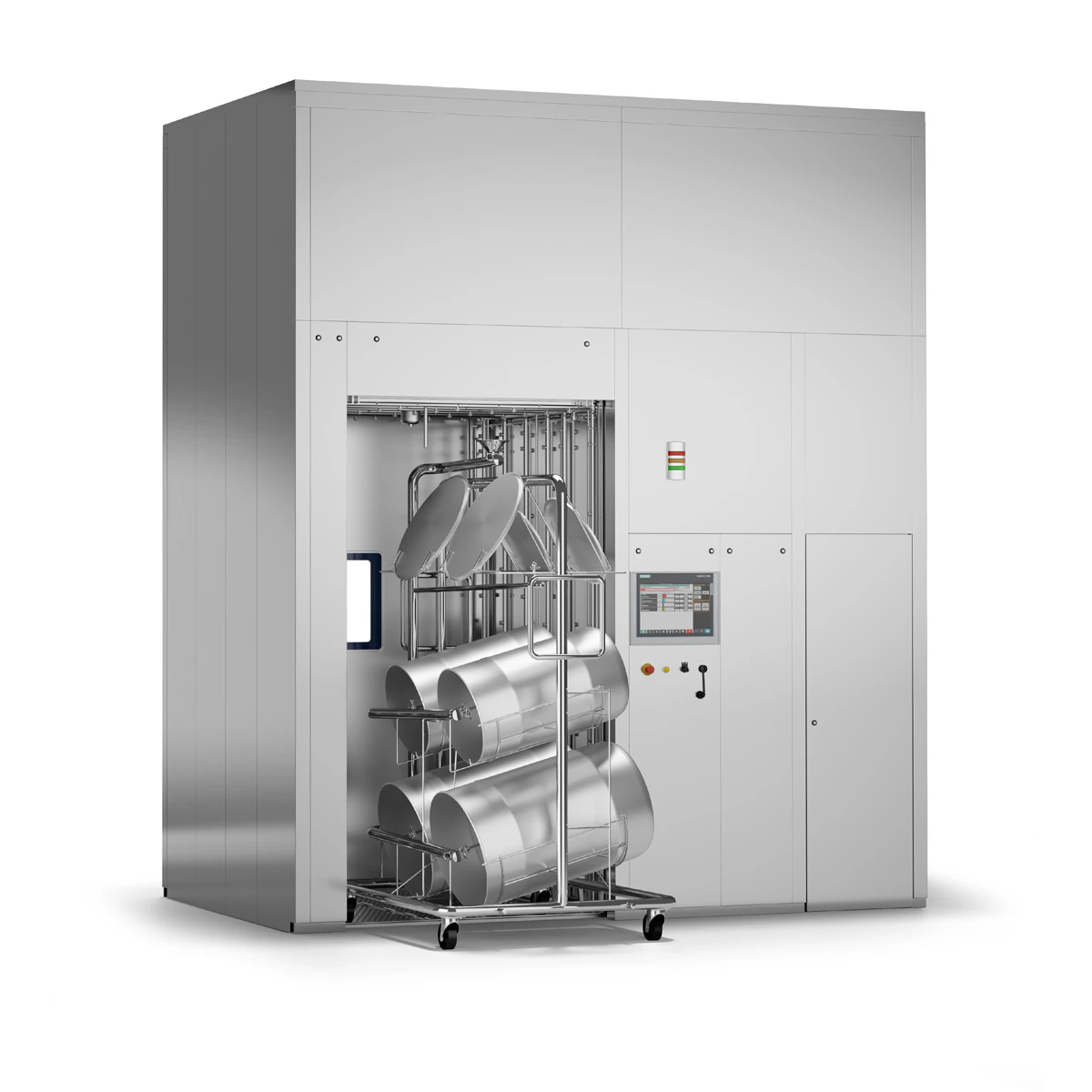

lc-ph-3-4-open

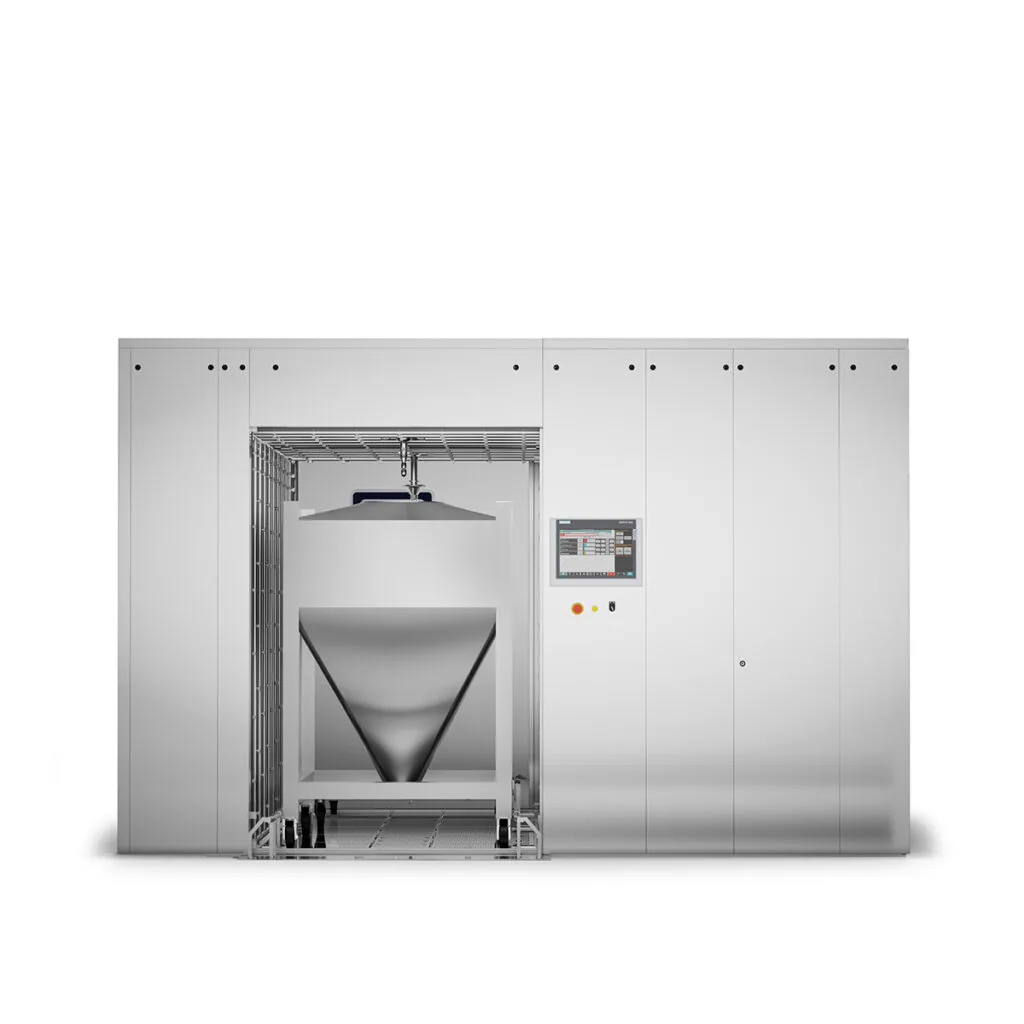

lb-front-open

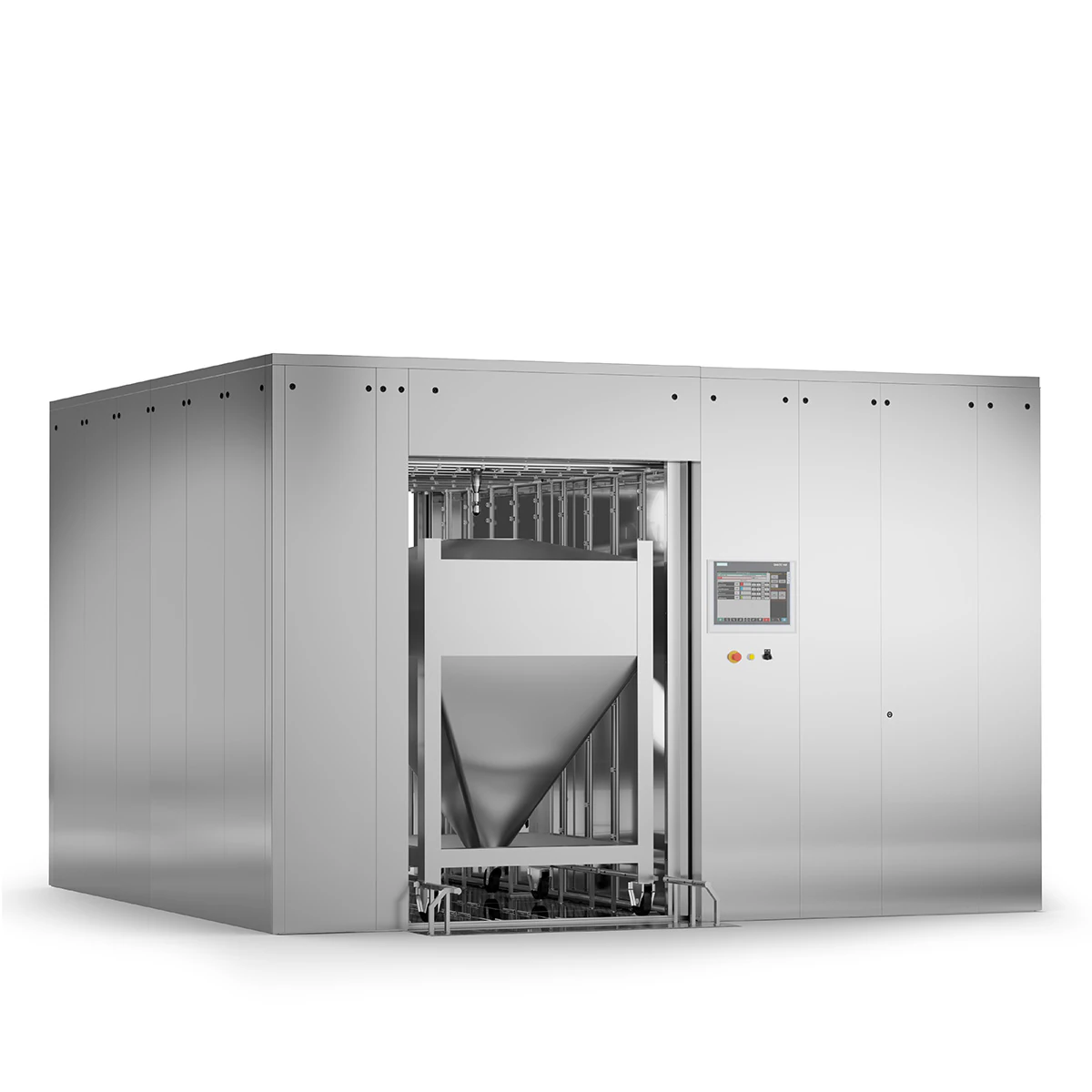

lb-3-4-open

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Client 1

Key Features

  • Chamber Volume

    Chamber volumes from 4,250 – 10,500 litres.

  • Configuration Options

    Over 400 configuration options available to support versatile, hygiene-critical applications.

  • Heating Options

    Steam or electric heating options available based on your requirements.

  • Performance

    Excellent cleaning and drying performance, with modular or custom trolley configurations for added flexibility.

  • Diagnostics & Automation

    Remote diagnostics & assistance, with integrated automation architectures.

  • Support

    Comprehensive qualification support, covering DQ, IQ, OQ, PQ requirements.
Discuss The Range

Applications

  • Intermediate Bulk Containers (IBCs), Large-diameter drums, Glassware, tanks, and carboys, Filling line components, ultracentrifuges, valves, and filter housings, Reactor vessels, tubing, TC fittings, and other bulky process equipment.
Discuss The Range

Configurations

Chamber Volume (L)

Doors

Heating Options

Enquire
4250 up to 10500LSingle or double door; floor or pit-mounted; with automatic horizontal sliding or hinged doors; in full glass or Stainless SteelSteam or Electrical

More Information

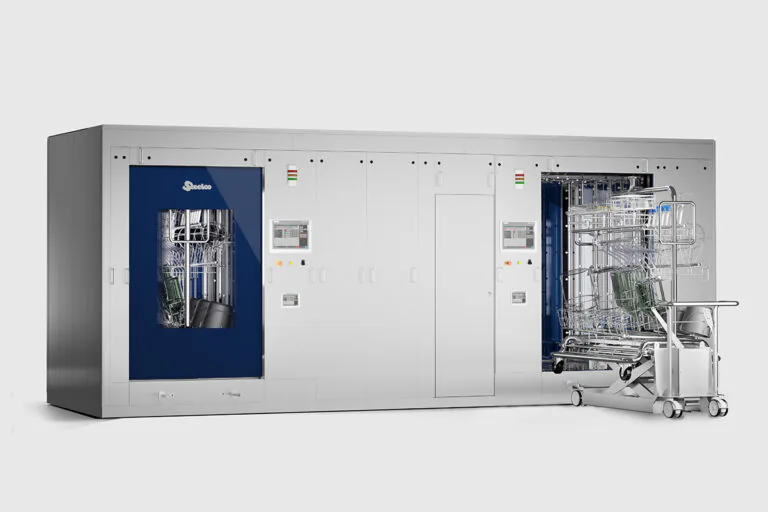

Customisable Layout & Footprint

Available in single-door or double-door pass-through designs, with floor or pit-mounted configurations, horizontal sliding or hinged doors in full glass or stainless steel. Additionally, remotely located or skid-integrated electrical cabinets and drying systems are available, with the optional shared technical area for inline installations of paired units.

Cycle Flexibility & Development

All LC PH models support configurable cleaning cycle recipes with adjustable parameters for Pre-wash, Wash with/without detergents, Rinse (recirculated, single-pass, or sequential), Drying and cooling, and optional air purging between steps to prevent cross-contamination. Recipes are tailored during the design phase to ensure process-specific performance for all load types.

Effective Sampling Systems

Quality assurance and validation are supported with an extensive range of sampling ports, available for Sump water, Final rinse, Process compressed air (PCA), Point-of-use water, and clean steam. Sampling points can be installed in the technical area or on the machine fascia, with manual or automatic valves.

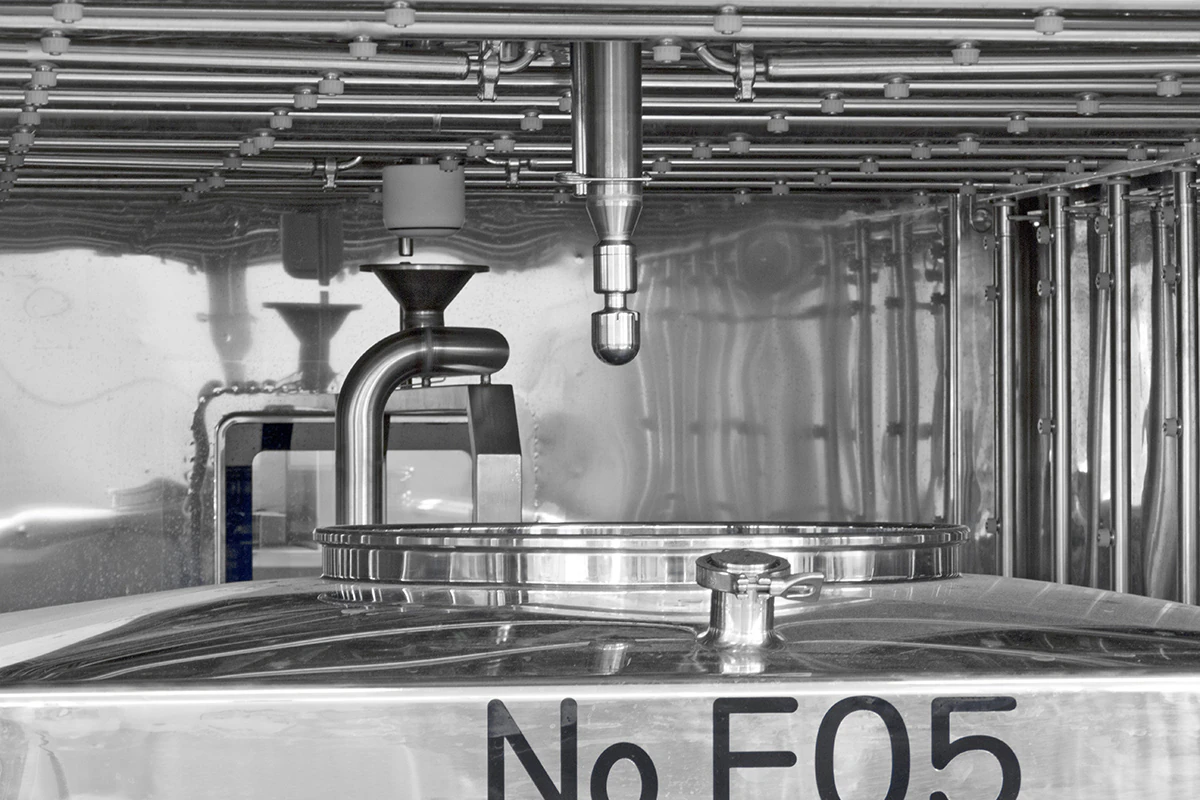

Automated IBC & Bin Cleaning Solutions

Customised solutions for IBC and drum washing include 360° rotating spray arms and rotating bins for full internal surface coverage. Dual-mode options allow for combined internal bin cleaning and rack/trolley cleaning within a single cycle.

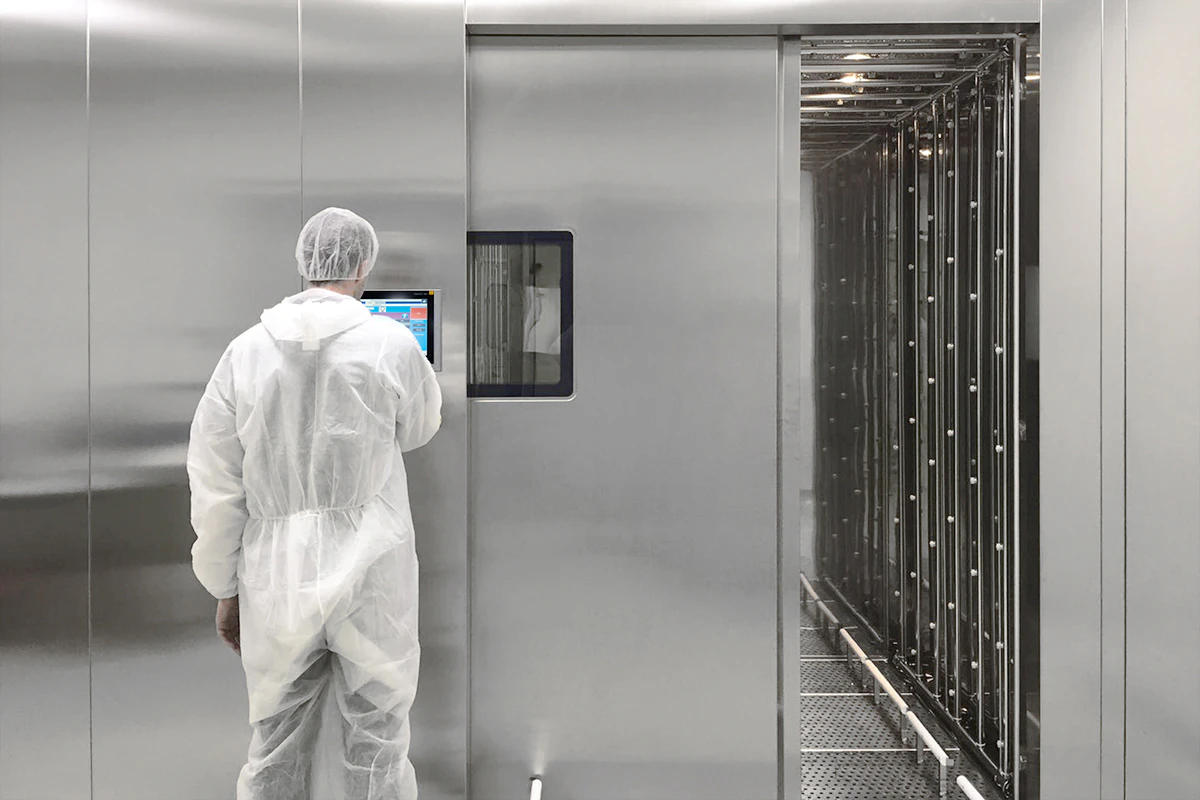

Advanced Automation & Connectivity

Steelco control systems are developed in accordance with ISPE GAMP© guidelines and fully support FDA 21 CFR Part 11 and EU Annex 11 compliance.
1. Platforms: Siemens or Rockwell/Allen-Bradley
2. Integrated SCADA for networked environments
3. VPN-based remote access for support and maintenance
4. Consistent interface and data management across all GMP models

Customised Trolley & Rack Solutions

Steelco engineers and manufactures its own custom racks and trolleys, ensuring seamless integration and optimised cleaning of every item. 3D CAD modelling ensures comprehensive cleaning and effective drying via the same injection ports used for water and hot sterile filtered air.
