MITO FB COMBI

The Ultimate Approach to Feeding Bottles treatment

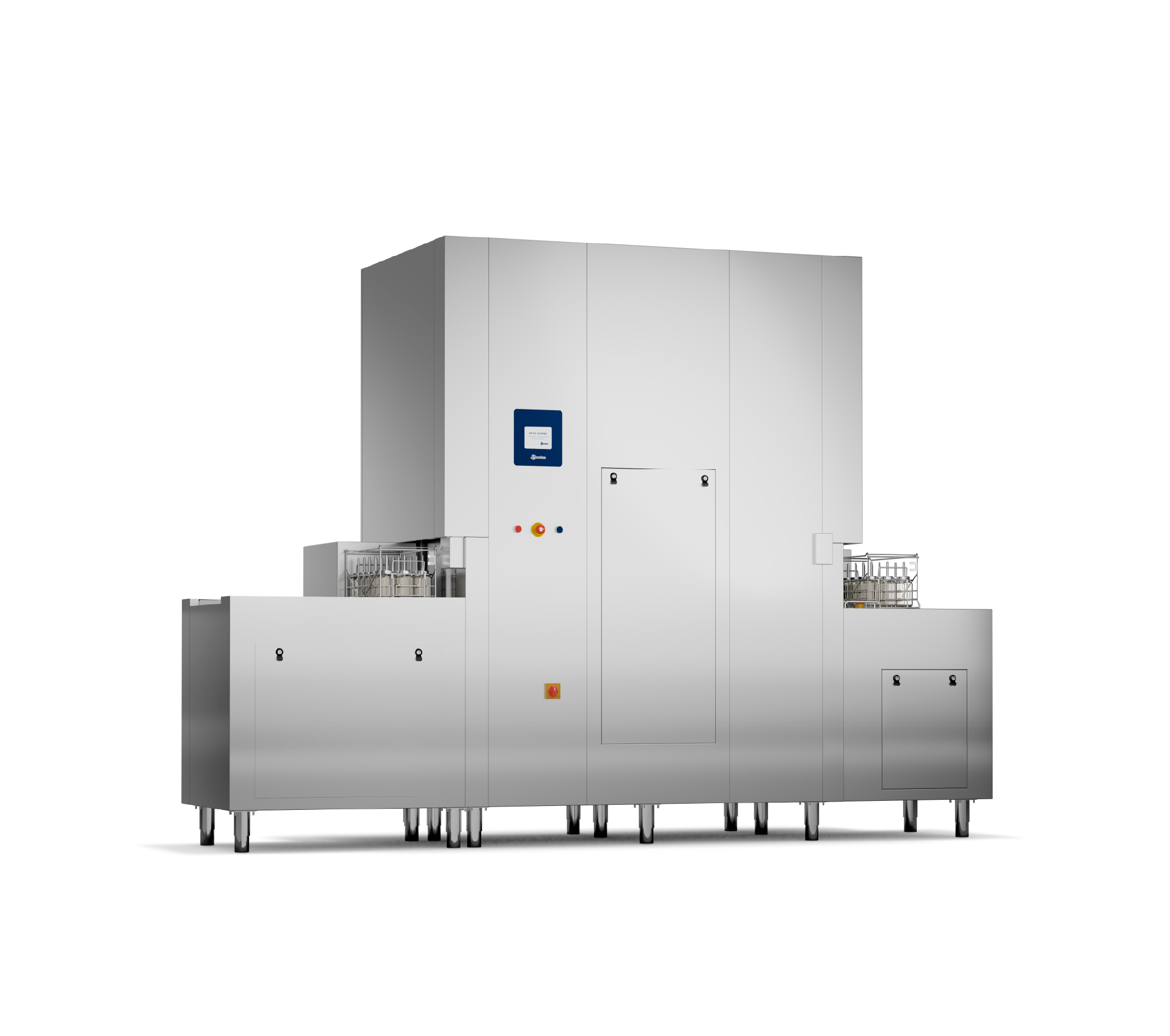

In partnership with Steelco, Sychem’s MITO FB COMBI offers an integrated and flexible solution to support the increasing demand for compact systems to fully automatic handling of bottles and caps. MITO FB COMBI is an all-in-one solution for decapping, emptying, washing, sanitisation, filling and recapping in less than 4 m² footprint. This versatile device is compatible with any model of caps and feeding bottles of the different brands available on the market. This high-productivity device can process up to 720 bottles and 720 caps per hours and provides compatibility with robotic loading and unloading functions.

A fully transparent external chamber door allows an easy visual inspection of the chamber and of the process. High-quality stainless steel 316L chambers, sump and pre-heating tanks ensure long-term reliability and optimal cleanliness. Washing and rinsing chambers are fitted with stainless steel interlocked space-saving sliding doors. Independent washing and rinsing systems avoid cross-contamination. Individual nozzles guarantee perfect cleaning of the outer and inner surfaces of the bottles. The device is suitable for in-line and conventional barrier pass-through applications.

Overall Dimensions (mm)

Capacity

Footprint (m²)

Download Brochure

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Key Features

High Productivity

A combination of up to 1440 bottles and caps reprocessed per hour with a considerable saving of time and staff
Effective Sanitisation

Individual nozzles for full bottle coverage during the wash and rinse cycles. Efficient sanitisation by rinsing at 85°C
Customisation

The unit can be configured for left-to-right or right-to-left work flow and can be integrated through a dirty to clean barrier
Versatility

Compatible with any model of caps and feeding bottles of the different brands available on the market
Automatic Detergent Dosing

Automatic detergent dosing via peristaltic pump providing precise addition of liquid chemical agent
Advanced Control System

PLC control system with user-friendly 7” touch screen LCD display allowing for 65 programming options. USB port, teleservice and tablet connectivity ready

Discuss The Range

Certifications

Meets European requirements EN 61010-1, EN 61010-2-040, EN 61326-1

Discuss The Range

Configurations

Overall Dimensions WxDxH (mm)	Enquire
3395 x 1165 x 2490

More Information

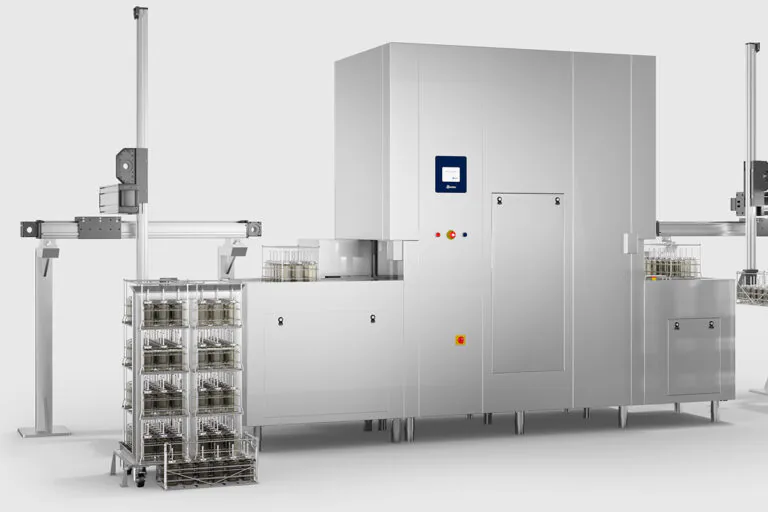

Complete Automation

Modern animal facilities require equipment able to deal with the fast-increasing demand of productivity. The MITO FB COMBI can be equipped with an automation system, from the very beginning or during a later stage. The machine can be combined with cartesian or anthropomorphic robots. Bottle crates stored on a transport trolley are positioned on a docking station on the loading and unloading side of the unit. The robot picks one the bottle crates and releases them on the loading conveyor. The robot can work automatically once it has been programmed or can be remotely controlled by an operator thanks to a pad which allows it to work in a manual mode.

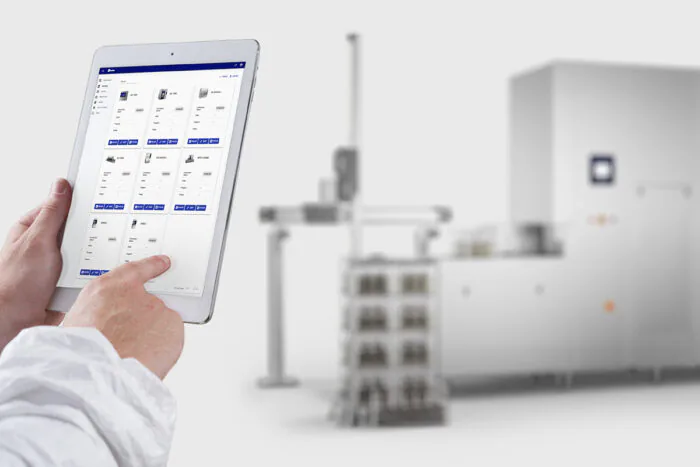

Complete Traceability

SteelcoData View software is designed to collect and record data from Steelco devices. Information collected in real-time is traced and efficiently visualized for device monitoring and data management.

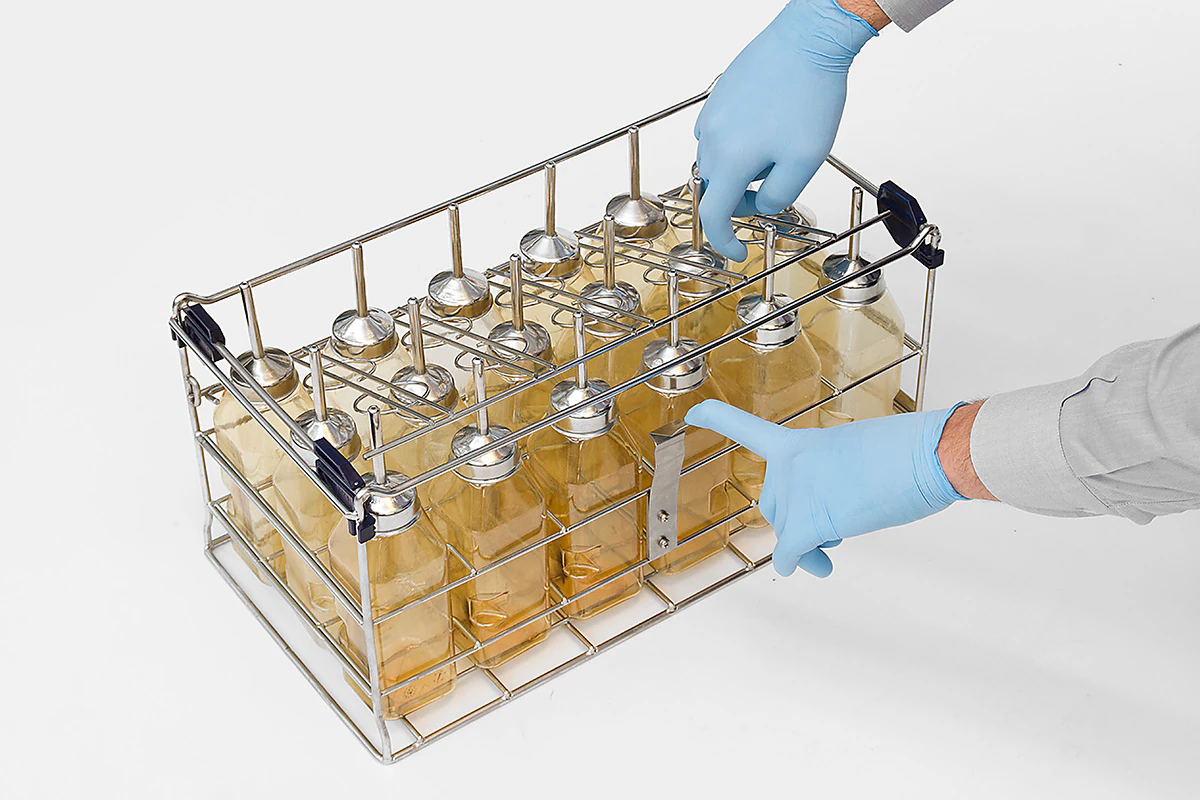

Customised Crates and Trolleys

A large variety of bottle crates and dedicated transport trolleys are available. Bottles baskets are made of 304 or 316L Stainless Steel, they are autoclavable and equipped with a smart solution for opening and locking the lid of the bottle crates. Transport trolley are autoclavable and equipped with 4 swivel wheels, available both in 304 or 316L stainless steel.
