TW 3000 Multichamber

Multichamber Washer Disinfector
In partnership with Steelco, Sychem’s TW 3000 is a fully automatic multi-chamber tunnel washer disinfector system with a space-saving motorised sliding-up glass door. Designed to meet the needs of processing departments with a high quantity of medical devices, it can process up to 18 DIN 1/1 net trays per cycle. The independent chambers improve throughput by processing multiple cycles simultaneously.

As a modular system, it is possible to configure the tunnel washer by combining modules to perform the pre-washing, ultrasonic washing, washing, rinsing, thermal disinfection, and HEPA filtered hot air drying functions customised to your needs. Equipped with an automatic loading/unloading conveyor system, TW 3000 is compatible with Steelco ATS (Automatic Transfer System).
Download Brochure

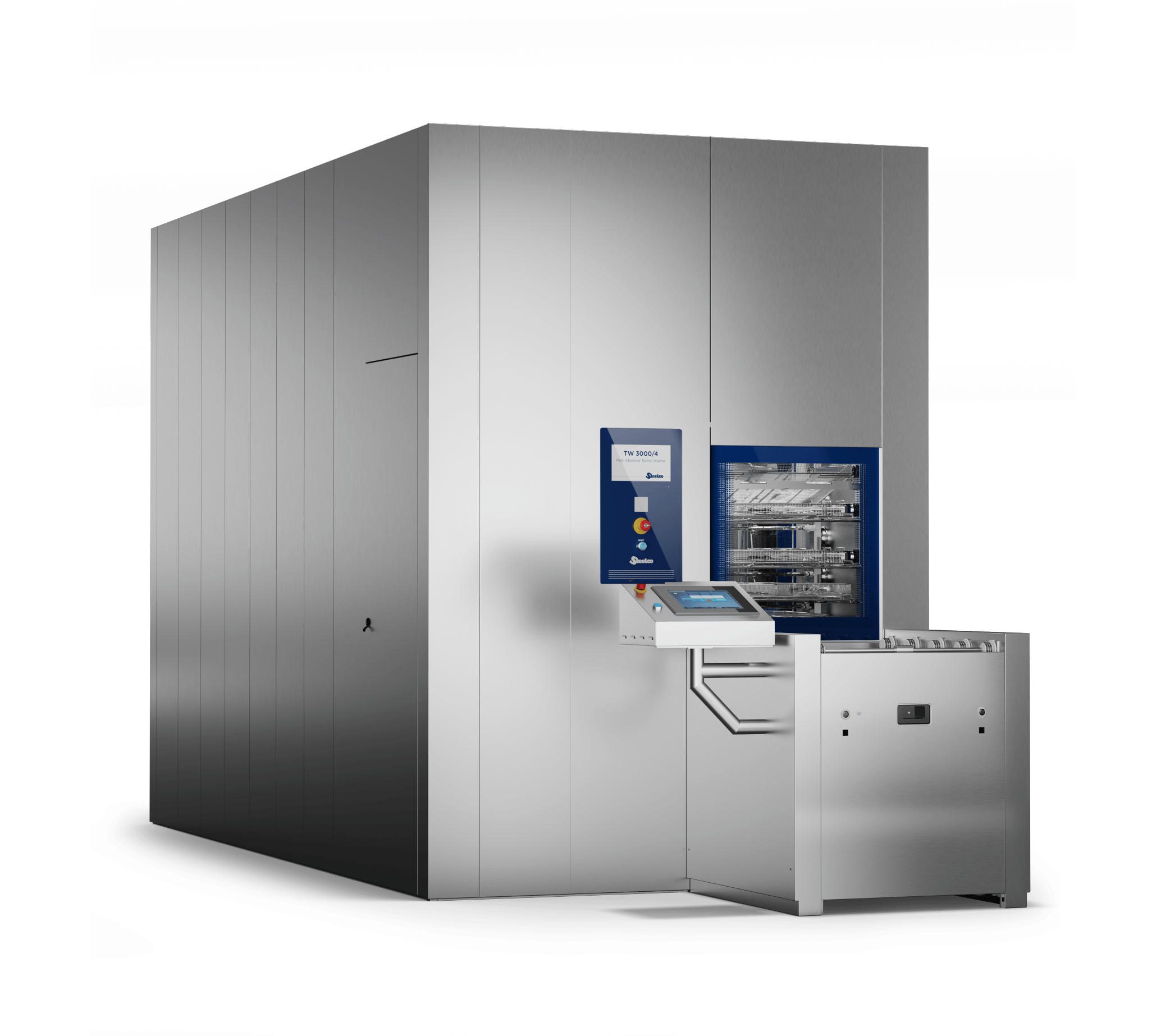

Steelco TW 3000 front view
Steelco TW 3000 front view

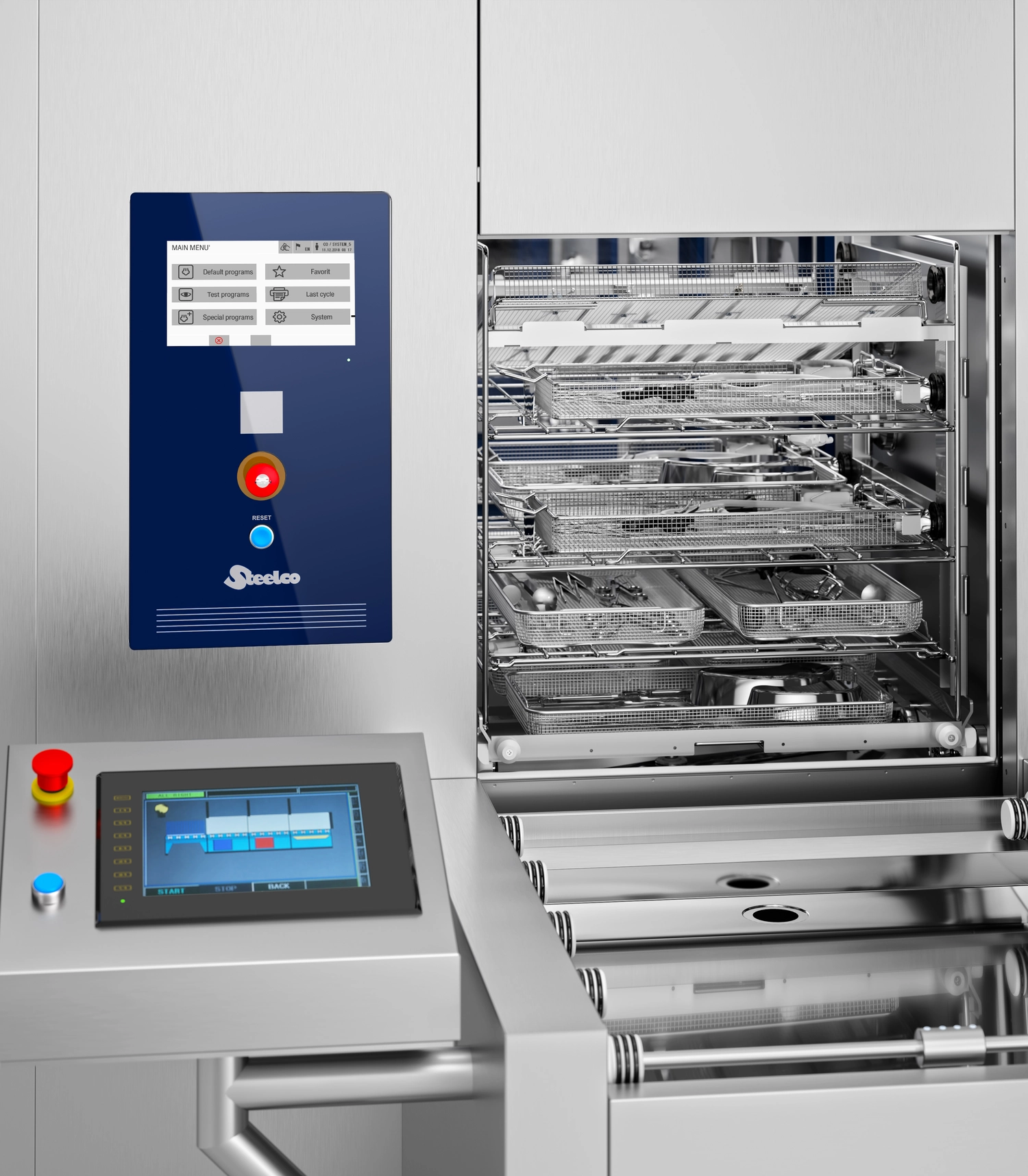

Steelco TW 3000 panel view
Steelco TW 3000 front view
Steelco TW 3000 front view
Steelco TW 3000 panel view

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Client 1

Key Features

  • Reprocessing Flexibility

    According to your needs, washing and disinfection of up to 18 DIN trays.

  • Modularity

    The system can be configured from 3 up to 5 chambers, depending on throughput requirements. It is possible to add extra modules even after installation to adapt TW 3000 to new future needs.

  • Smart Filtering System

    Triple water filtering system – easily accessible from the washing chamber – captures residue preventing re-circulation and extending the pump life.

  • Inspection Windows

    Every module is equipped with a dedicated fully sealed inspection window for easy maintenance and routine cleaning operations.

  • Ultrasonic Treatment

    TW 3000 Multichamber Series can be equipped with an ultrasonic module for the automatic treatment of the loads. It is also possible to skip the passage through the module when not needed.

  • Drying Efficacy

    HEPA 14 filtered forced hot air injection combined with the washing trolley’s rotating arms guarantees excellent drying results.
Discuss The Range

Certifications

  • Steelco washer disinfectors are designed to comply with the European EN ISO 15883-1/2 guidelines on decontamination.
Discuss The Range

Configurations

Width (mm)

Chamber Volume (L)

Wash Cart Volume (L)

Load Capacity

No.of Chambers

Enquire
1900-2100mm500L350LUp to 18 DIN 1/1 trays From 3 to 5

More Information

Automation

TW 3000 Multichamber Series is compatible with all Steelco automation available for CSSD. Manual and automatic loading and unloading conveyors as well as the ATS and m-ATS systems make the TW 3000 series a perfectly integrated and flexible system that is well suited to any type of workflow.

Loading Racks

A comprehensive range of washing trolleys specially designed for TW 3000 Multichamber complements it, maximising productivity and optimising your workflow. Available in several models and with different load capacities (up to 18 DIN) to meet the most diverse requirements.

Workflow Optimisation

Designed to meet the needs of high productivity within the CSSD, TW 3000 Multichamber Serie is a very high-performance machine that combines multiple processes into one device. It significantly reduces cycle time while maintaining the process quality of a single chamber WD. All chambers are independent and totally sealed for the entire process.

10" Intuitive HMI

Control System with PLC touch screen, allowing for 65 programming options. 10″ colour touch screen panel on the front-loading side and 7″ on the unloading side.

Downloads

Steelco Washer Disinfectors for CSSDs

Steelco Washer Disinfectors for CSSDs

Download
