VS L – Bulk Capacity

Steam Sterilisers with Chamber Volumes from 920 to 9.070L
Sychem’s VS L Series – Bulk Capacity Range of steam sterilisers is designed for laboratory applications, including research laboratories, bio-containment, and animal care facilities. Up to 11 standard chamber sizes with a volume from 920 to 9.070 liters are available with pressure vessel and relief valves that are PED and/or ASME marked or according to the directives of the country of destination.

Our VS L sterilisers are engineered to offer best-in-class solutions to reduce energy and water consumption to give users the lowest operating costs per load. ECO water-saving options provide unrivaled efficiency levels, reducing water consumption to nearly zero depending on the chosen model and options.

All Steelco VS L steam sterilisers feature high-quality AISI 316L stainless steel pressure vessels. Pressure vessels are full jacket double-wall design and chamber cross section is rectangular. Sterilisers are available in single or double-door configurations with manual hinged (available for some models only) or automatic horizontal sliding. Steelco VS L sterilizers are controlled by commonly available industrial grade PLC digital controllers with colour touch screen HMI.
Download Brochure
steelco-vs-l-bulk-498686-front

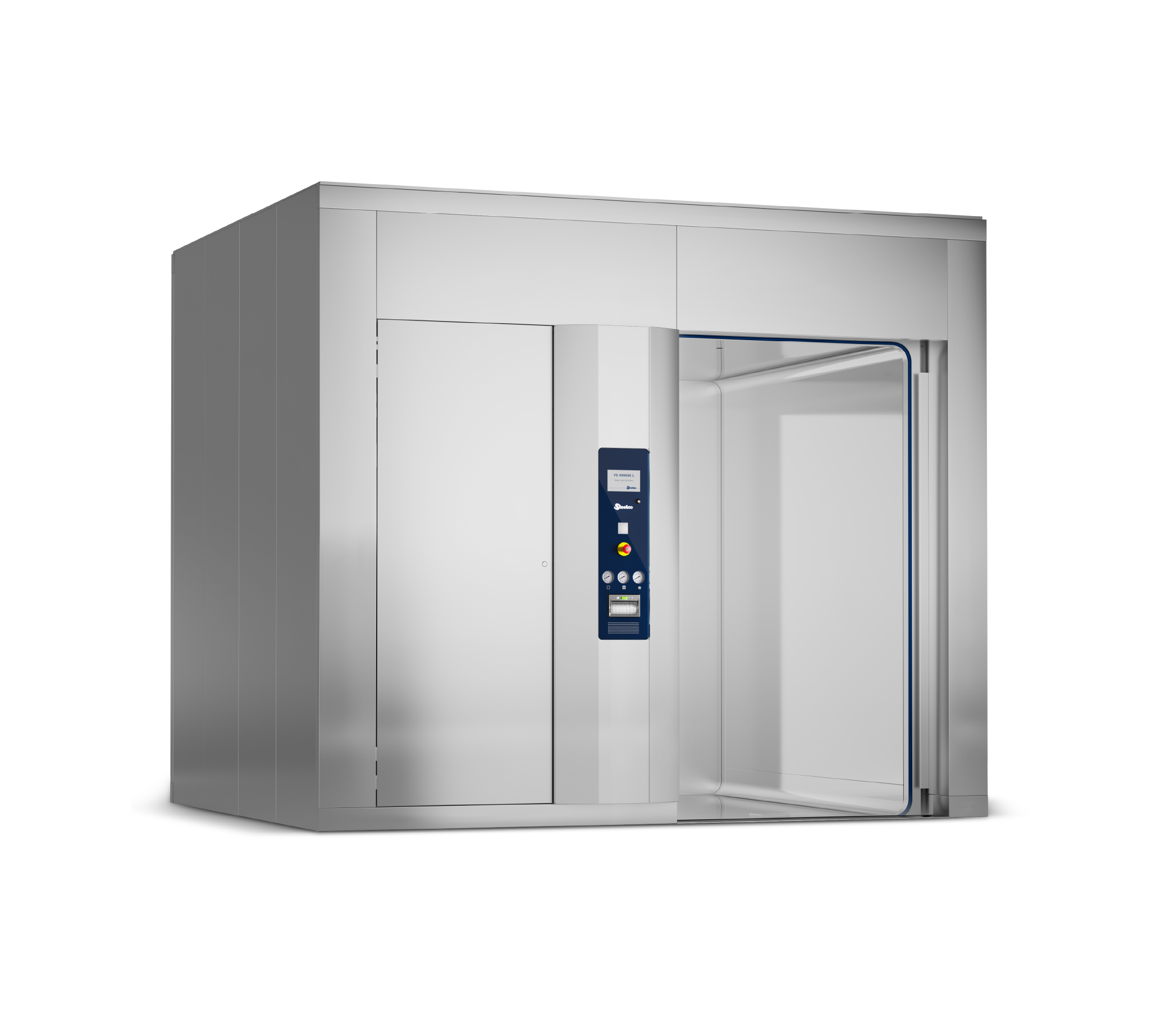

steelco-vs-l-bulk-498686-side

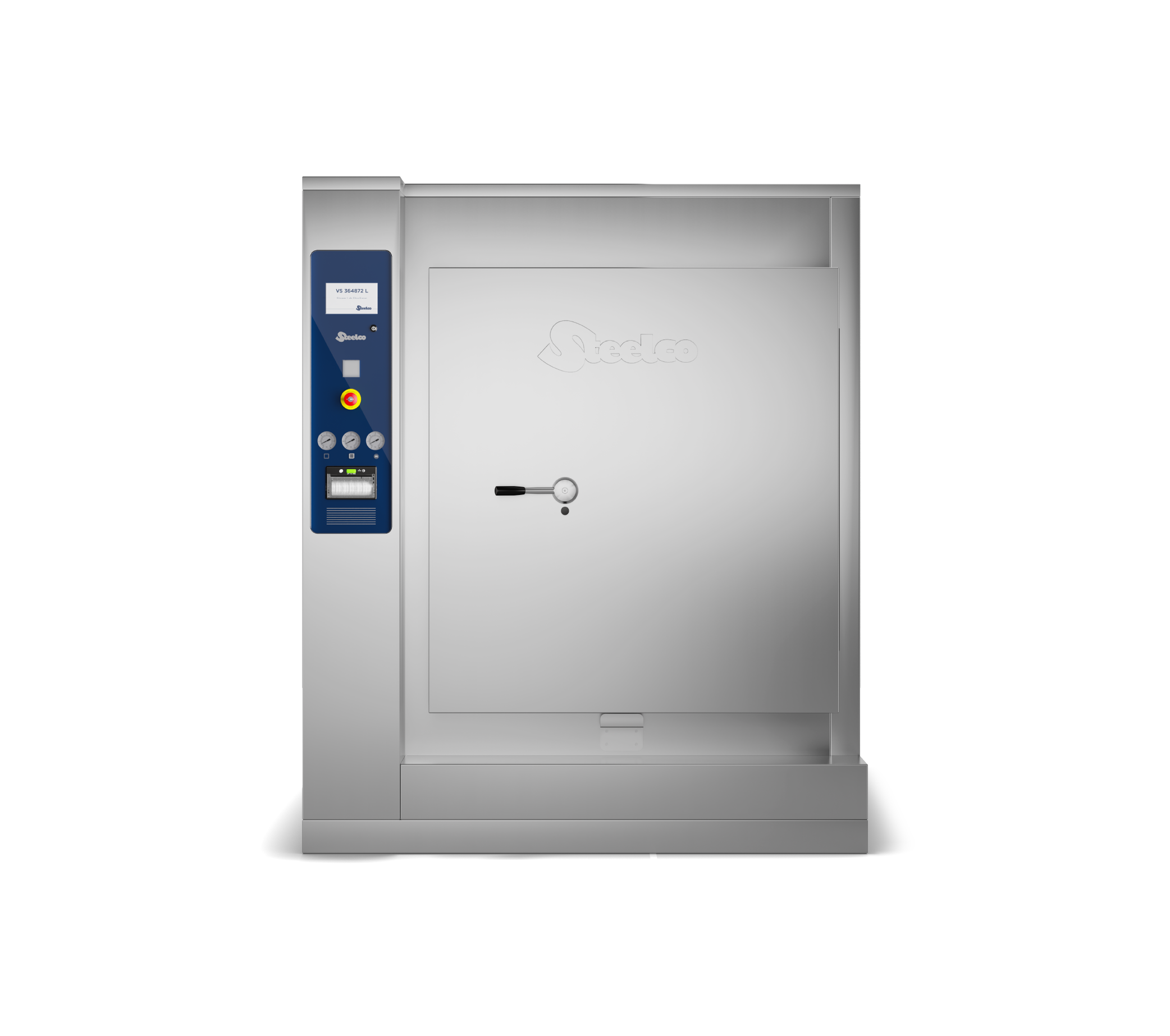

steelco-vs-l-bulk-364872-front

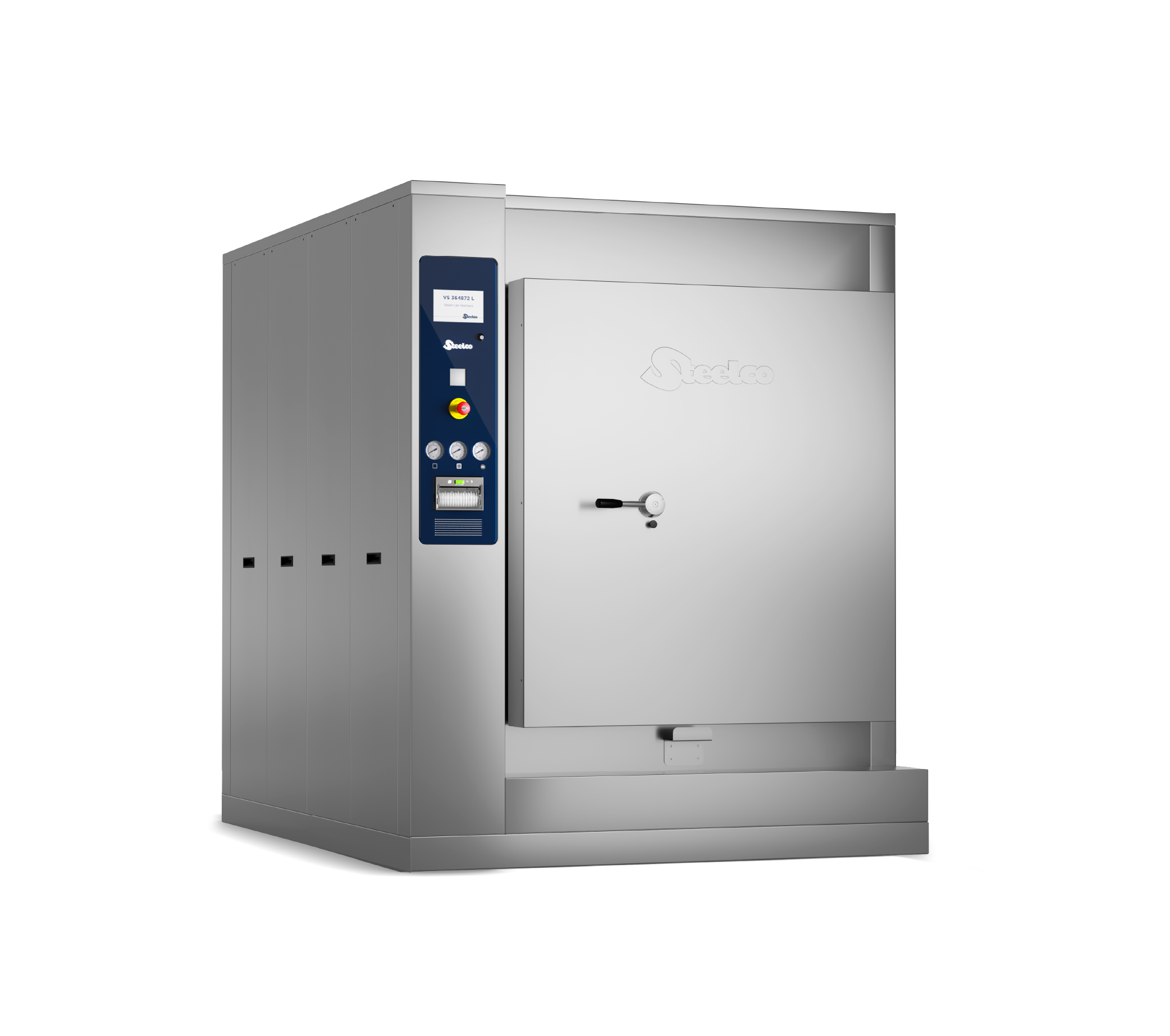

steelco-vs-l-bulk-364872-side

Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:

Client 1

Key Features

  • Fully Customisable

    More than 50 options available to meet the most challenging processing needs.

  • H2O2 Port

    H2O2 port on fascia can be installed to connect external hydrogen peroxide generator.

  • Temperature Probes

    Temperature probes installed in chamber and jacket and one product probe to monitor temperatures of the load throughout the entire cycle.

  • Easy Maintenance

    According to model type, piping, valves, electrical components, and wiring are easily accessible from the front door panel or side access.
  • Green circle with a tick inside

    7″ Control System

    7″ Colour touch screen operating panel with PLC with multi-level user access system positioned on side of the chamber.
  • Green circle with a tick inside

    Traceability

    Built-in printer and ethernet port for process recording and complete cycles and data traceability with SteelcoData View.
Discuss The Range

Certifications

  • Standards – 2006/42/CE (Machinery Directive) | 2014/30/EU (EMC Directive) | 2014/68/UE (PED)
  • IEC 61010-2-040 | EN ISO 12100 | EN 61326 | EN 13445 | EN ISO 9712| EN ISO 9606-1 | EN ISO 15614-1 | ASME code Sec.VIII div. 1 & div. 2 | UL compliant | EN 285 applicable requirements
Discuss The Range

Configurations

Chamber Volume

Overall Dimensions

Enquire
from 920 litres to 9070 litres – Custom dimensions are available upon request. The overall dimensions may vary according to machine configuration and customer’s requirements. Refer to product catalogue for discovering the full range and overall dimensions.

More Information

Flexible Configuration

Single and double door pass-through, manual hinged or automatic space-saving sliding door. The electrical cabinet can be integrated within the skid of the unit or remotely installed. The technical area can be on the right or left side; alternatively, it can be shared in the case of the “inline” installation of a pair of machines.

High Quality Material

AISI 316L stainless steel chamber with high-efficiency heat transfer full jacket system for even heat distribution. Doors internally made of stainless steel AISI 316L with no welding. Heat insulation with durable reusable cover for fast service maintenance at a lower cost.


Steelco Barrier Solutions

In BSL laboratory applications steam sterilizers play a key role as part of the building containment system. Double door sterilizers act as a pass-through between hot and cold zones (or sterile and non-sterile zones) and must be sealed to the wall to form a cross contamination barrier. Steelco offers different biocontainment barrier solutions:

– Air differential seal – This solution provides a solid AISI 304 stainless-steel flange bolted to the sterilizer body, and stainless-steel panels inserted between the flange and the building structure such as ceiling, floor and walls. All panels are tightly fitted to their adjoining surfaces with seams filled with silicone.

– Bioseal – This solution includes two stainless-steel 304 flanges – one fixed or welded to the chamber and a second one fixed to the building structure. Flanges are connected via long-life flexible gasket to ensure the complete airtightness.

Downloads

Steelco VS L Series Steam Sterilisers

Steelco VS L Series Steam Sterilisers

Download
Steelco Biomedical Solutions

Steelco Biomedical Solutions

Download
