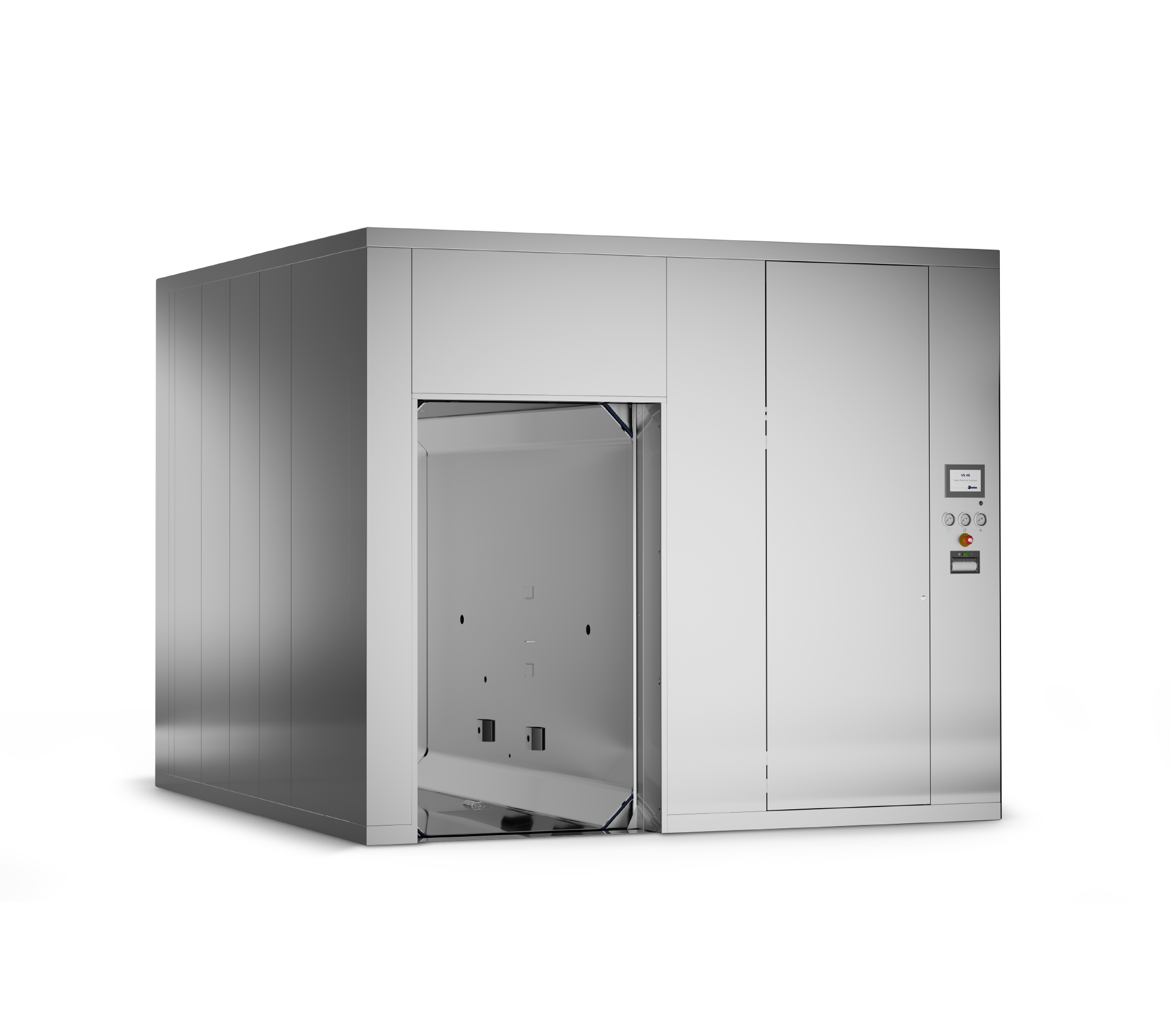

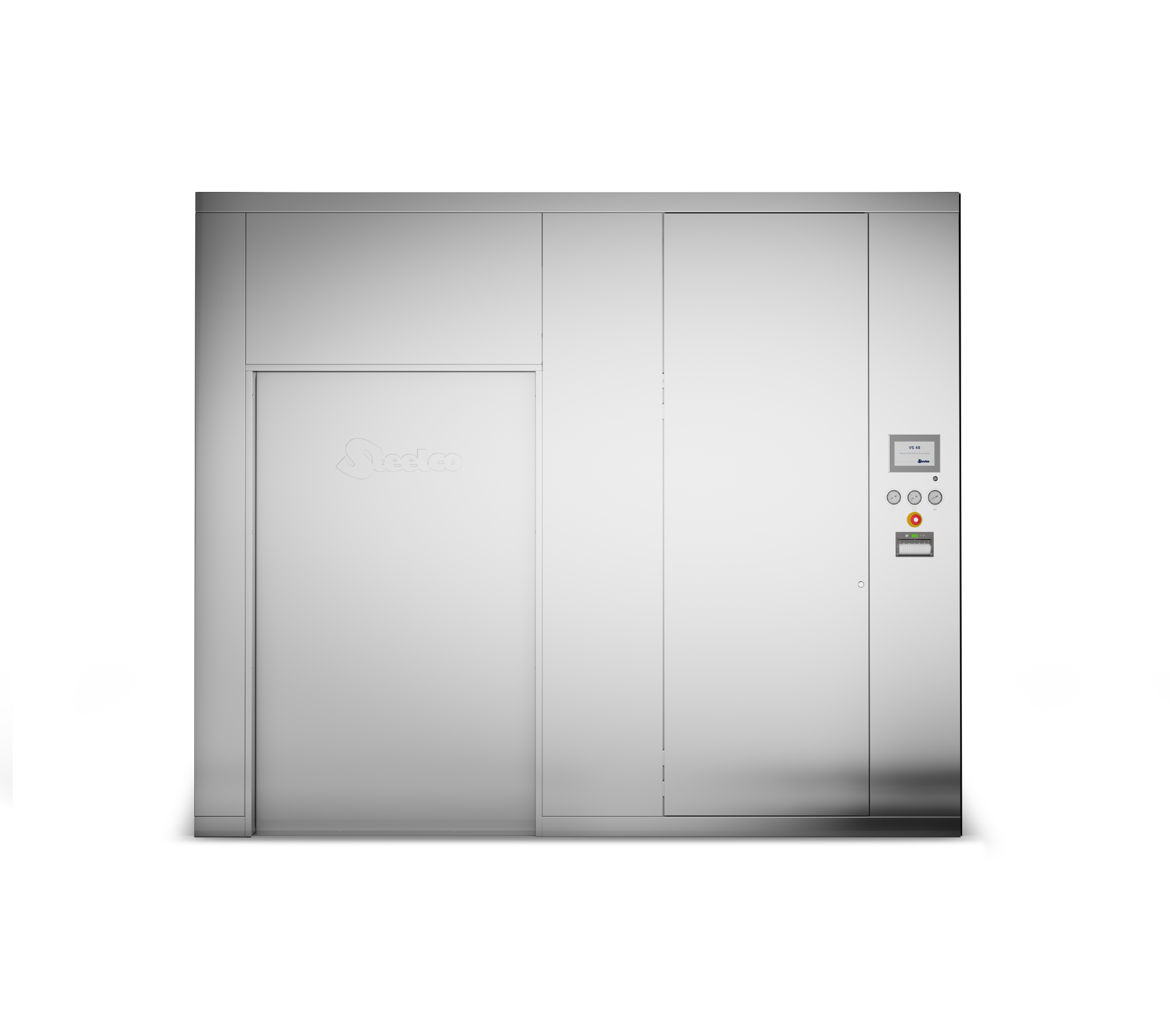

VS M Series
Available as a single or double door pass-through option, the VS M Series are available in two models, VS 36 M and VS 48 M, respectively, with 3231 and 4653 liters usable capacity.
Our solutions are trusted by industry leaders for critical processes in Infection Control & Life Science sectors:
Client 1
Key Features
-
Flexible Configuration
Available in two different models, VS 36 M and VS 48 M, respectively, with 3231 and 4653 liters of useful capacity.
-
Easy Loading
Completing our solution for the professional reprocessing of bed components, Sychem offers a wide range of dedicated loading trolleys for mattresses, pillows, and quilts made of AISI 304 with inserts and accessories for a versatile load. Loading ramp available when the autoclave is installed out of the pit (150 mm).
-
Advanced Eco Option
Condensate heat recovery system to be used as feed for the steam generator: ECO CD Standard solution, with a tank collecting both chamber and condensate drains; ECO EVO, a water-saving system for vacuum pump.
-
Optimised Process Speed
A built-in Uninterruptible Power Supply unit (UPS) is also available as a “save the cycle” option allowing up to 5 minutes of continuous operation of the control system in the event of a power failure.
-

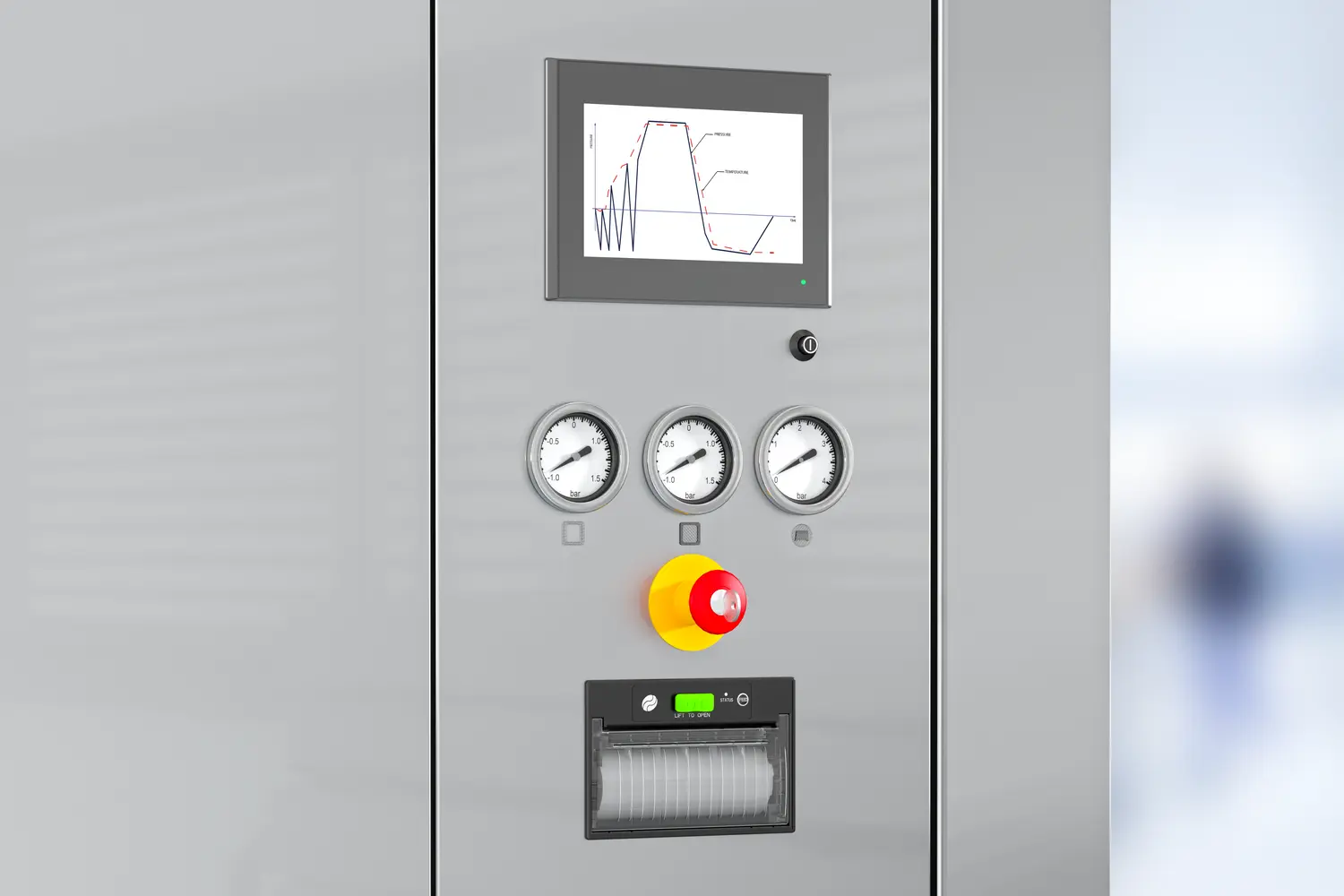

7″ User Friendly HMI
User-friendly control panel with 7″ touch screen.
-
Full Traceability:
Cycle traceability through the integrated printer or network connection. Fully compatible with SteelcoData Live Software.
-
Process Quality Focus
Improving safety and performance quality processes with advanced features, including separate direct injection of steam and high-efficiency heat transfer jacket system.
-
Safety, Design and Strength
The rectangular design chamber minimizes dead space for optimal loading and throughput. The best possible jacket covering ensures fast heating and reduces cycle times and areas of potential condensation. In addition, high-quality AISI 316 L steam process circuits guarantee long-term reliability and steam cleanliness.
Disinfecting Cycles
- 3 test/service programs: warm-up and vacuum test and optional warm-up+vacuum test
- 3 working programs including those with A, B, and C range of effectiveness, with temperatures of 75°C (optional) and 105°C (standard) especially developed for a fast and effective bed reconditioning process
- 8 programs can be customised according to the customer’s needs. The parameters of each cycle are programmed to run through each phase automatically
Configuration
Model | Overall Dimensions (mm) | Useful Capacity (L) | Enquire |
|---|---|---|---|
| VS M 36 | 2960 x 2914 x 1950 | 3231 – Up to 7 BA (according to DIN 58949) | Up to 10 mattresses 120mm | Up to 12 mattresses 100mm | |
| VS M 48 | 2960 x 2914 x 2500 | 4653- Up to 10 BA (according to DIN 58949) | Up to 15 mattresses 120mm | Up to 17 mattresses 100mm |
