Aseptic Isolators

In proud partnership with Ortner

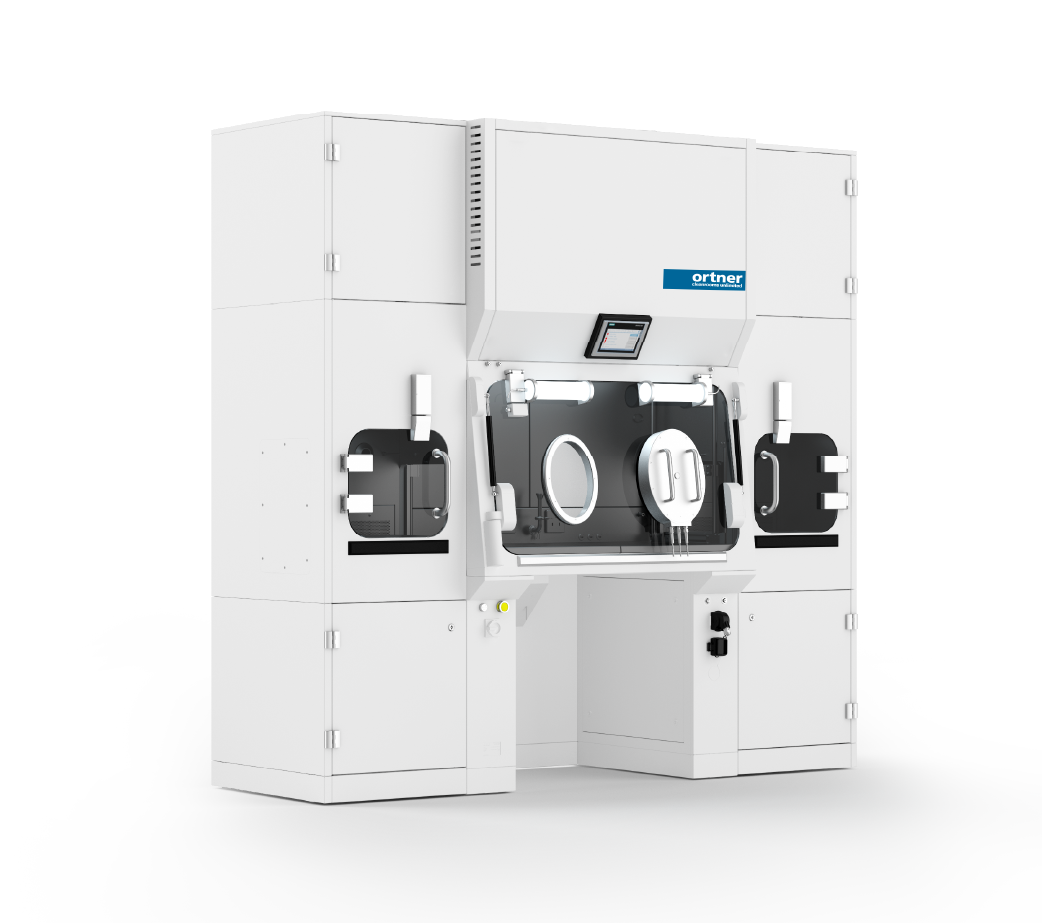

Designed for Pharmaceutical production and Hospital Pharmacies, our Aseptic Isolator is a modular, GMP-compliant system for the safe handling of highly sensitive materials. Operating under positive pressure (10-100 Pa), it prevents contamination by ensuring that external particles do not enter the chamber, making it ideal for product and personnel protection.

Precision and Protection for Aseptic Processes

Download Brochure

Key Features & Benefits

Aseptic Isolators provides industry-leading protection for aseptic processes, ensuring the highest levels of safety, efficiency, and contamination control.

Integrated H₂O₂ gas generator ensures LOG6 bio-decontamination with complete process monitoring and logging.
Independent supply and exhaust air system with HEPA H14 filtration for ISO 5/A cleanroom conditions.
Electrically height-adjustable workstation and intuitive touchscreen interface for seamless operation.
Real-time tracking of laminar airflow, pressure, temperature, humidity, and particle levels.

Customisable Options

Automated glove testing & logging
Additional airlocks with bio-decontamination
Integrated temperature & humidity monitoring
Remote maintenance access & audit trail
Intercom system with surveillance camera
Fully adjustable isolator height

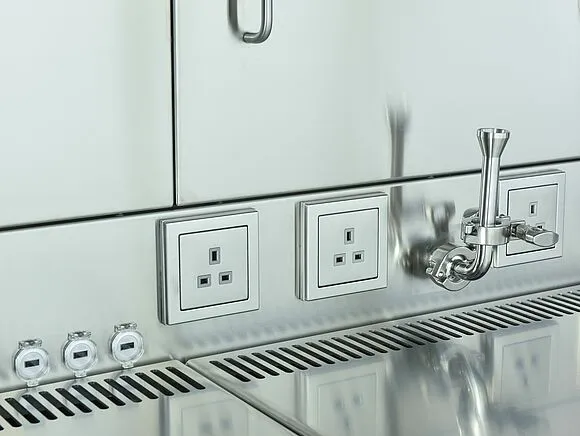

Additional RTP ports & electrical connections

Learn More

Configurations

Technical Specifications	Values	Enquire
Cleanroom Class	ISO 5/A (chamber); ISO 8/D or better (installation site)
Weight	900 kg (2-glove model) / 1200 kg (4-glove model)
Electrical Supply	3 x 400V / 50 Hz / 8 kW
Compressed Air	H14 filtered; 6 bar at 400 L/min
Airflow Velocity	0.3 – 0.45 m/s (adjustable)
Noise Level	< 60 dB(A)
Integrated H2O2 Gas Generators	ISU Compact; LOG6 decontamination; injection rate 1-10 g/min
Particle Monitoring	Online system for 0.5 μm & 5.0 μm with continuous logging
Isolator Control System	Siemens S7-1500 PLC with 9” touchscreen interface
